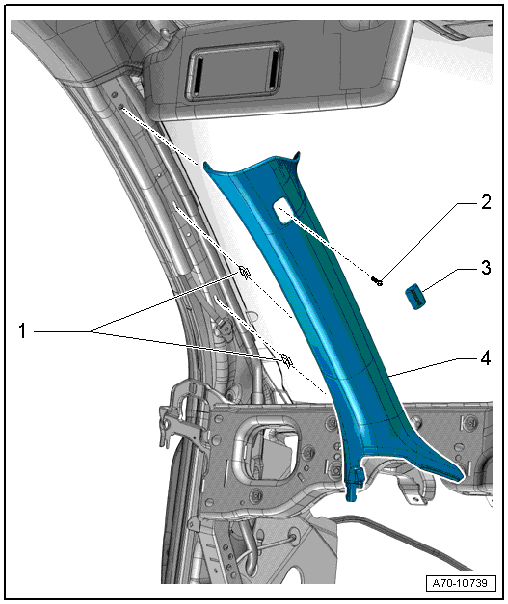

Overview - A-Pillar Trim Panel
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Clamps
- Insert in the trim panel
- Replace if damaged or deformed
- Bolt
- 3.5 Nm
- Always replace if removed
- Threaded screw holes must always be cleaned (for example, with thread cutter)
- Cap
- With the "Airbag" symbol
- Carefully unclip
- Hangs from trim and cannot be detached
- Upper A-Pillar Trim Panel
- Removing and installing. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
