Overview - B-Pillar Trim Panel

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

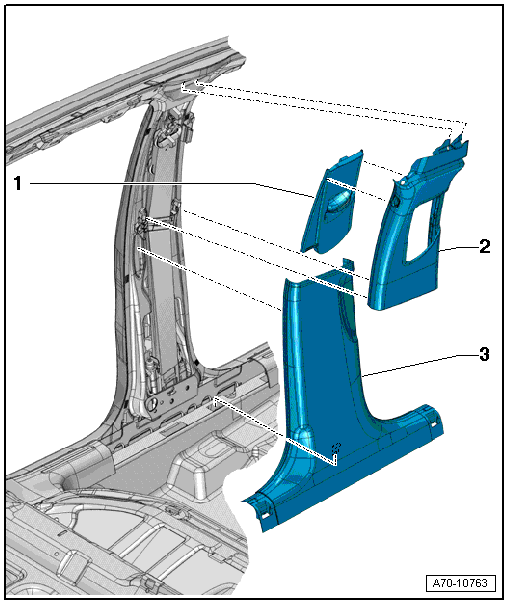

Fig 1: Overview Of B-Pillar Trim Panel

Courtesy of AUDI OF AMERICA, LLC

Slider
- For the seat belt height adjuster
- Part of the upper B-pillar trim
- Removing and installing. Refer to B-PILLAR TRIM PANEL, REMOVING AND INSTALLING, UPPER B-PILLAR TRIM PANEL .
Upper B-Pillar Trim Panel
- Removing and installing. Refer to B-PILLAR TRIM PANEL, REMOVING AND INSTALLING, UPPER B-PILLAR TRIM PANEL .
Lower B-Pillar Trim Panel
- Removing and installing. Refer to B-PILLAR TRIM PANEL, REMOVING AND INSTALLING, LOWER B-PILLAR TRIM PANEL .
