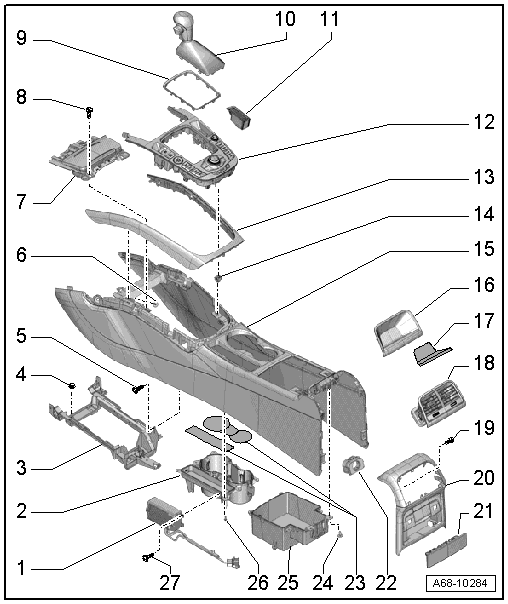

Fig 1: Overview Of Center Console

Courtesy of AUDI OF AMERICA, LLC

Converter with Socket, 12 V-230 V -U13-
- Extra equipment version; for the center arm rest only
- Removing and installing. Refer to Converter with Socket, 12 V-230 V -U13-, REMOVING AND INSTALLING
Cupholder
- Removing and installing. Refer to CUPHOLDER, REMOVING AND INSTALLING .
Bracket
- For the center console
- Removing and installing. Refer to CENTER CONSOLE BRACKET, REMOVING AND INSTALLING .
Nut
- 8 Nm
- Quantity: 4
Bolt
- 3 Nm
- Quantity: 4
Bolt
- 1.4 Nm
- Quantity: 8

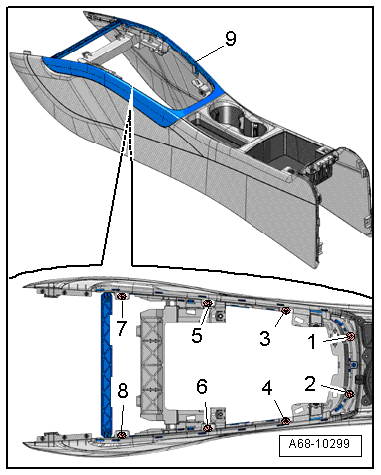

- Tightening sequence, refer to Installing (See Figure).
Front Ashtray
- Removing and installing. Refer to FRONT ASHTRAY, REMOVING AND INSTALLING .
- Ashtray Trim, Removing and Installing. Refer to FRONT ASHTRAY TRIM, REMOVING AND INSTALLING .
Bolt
- 2.5 Nm
- Quantity: 2
Decorative Frame
Gearshift Lever or Selector Lever
- Gearshift Lever, Removing And Installing. Refer to OVERVIEW - TRANSMISSION COVER, GEARSHIFT SHAFT for Manual Transmission 0B2 Refer to OVERVIEW - TRANSMISSION COVER, GEARSHIFT SHAFT for Automatic Transmission 0b6
- Selector Lever, Removing And Installing. Refer to OVERVIEW - SELECTOR LEVER HANDLE
Coin Holder
Insert
- For the center console
- Equipment levels
- Removing and installing. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .
- Multimedia System Control Head -E380-, removing and installing. Refer to FRONT INFORMATION DISPLAY CONTROL HEAD CONTROL MODULE, REMOVING AND INSTALLING .
Trim Molding
- For the center console
- Equipment levels
- Removing and installing. Refer to CENTER CONSOLE DECORATIVE TRIM, REMOVING AND INSTALLING .
Clip
- Quantity: 6
- Install on the center console insert
Center Console
- Equipment levels
- Removing and installing. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
Rear Storage Compartment
- Equipment levels
- Removing and installing. Refer to CENTER CONSOLE REAR STORAGE COMPARTMENT, REMOVING AND INSTALLING .
Liner
Rear Vent
- Equipment levels
- Removing and installing. Refer to REAR CENTER CONSOLE AIR VENT, REMOVING AND INSTALLING .
Bolt
- 2.5 Nm
Rear Trim
- For the center console
- Equipment levels
- Removing and installing. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .
Rear Ashtray
- Removing and installing. Refer to REAR ASHTRAY, REMOVING AND INSTALLING .
12 V Socket
- Removing and installing. Refer to OVERVIEW - CIGARETTE LIGHTER, 12 V SOCKET
Liners
Bolt
- 1.4 Nm
- Quantity: 4
Storage Compartment
- Equipment levels
- Removing and installing. Refer to FRONT CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING .
Bolt
- 1.4 Nm
- Quantity: 8
Bolt
- Quantity: 2
- 1.4 Nm
