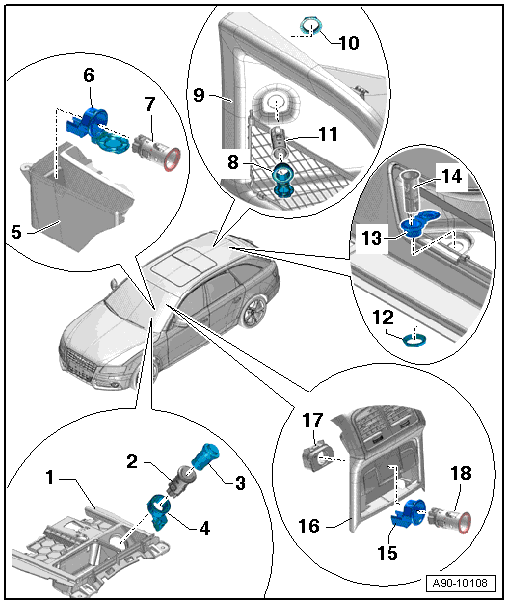

Overview - Cigarette Lighter, 12 V Socket
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
With 230 Volt socket
- Mount
- For Cigarette Lighter -U1-
- Cigarette Lighter -U1-
- Removing and installing. Refer to Cigarette Lighter -U1-, REMOVING AND INSTALLING .
- Cigarette Lighter
- Cigarette Lighter Illumination Bulb -L28-
- Removing and installing. Refer to Cigarette Lighter Illumination Bulb -L28-, REMOVING AND INSTALLING .
- Center Console
- Socket Illumination Bulb -L42-
- For 12 V Socket -U5-
- Removing and installing. Refer to Socket Illumination Bulb -L42- /12 V Socket -U5-, REMOVING AND INSTALLING .
- 12 V Socket -U5-
- Removing and installing. Refer to Socket Illumination Bulb -L42- /12 V Socket -U5-, REMOVING AND INSTALLING .
- Mount with Cover
- For 12 V Socket 3 -U19- - Avant
- Right Luggage Compartment Side Trim
- Nut
- 2 Nm
- 12 V Socket 3 -U19- - Avant
- Removing and installing. Refer to 12 V Socket 3 -U19-, REMOVING AND INSTALLING, AVANT .
- Replacing. Refer to 12 V Socket 3 -U19-, REPLACING .
- Nut
- 2 Nm
- Mount with Cover
- For 12 V Socket 3 -U19- - Sedan
- 12 V Socket 3 -U19- - Sedan
- Removing and installing. Refer to 12 V Socket 3 -U19-, REMOVING AND INSTALLING, SEDAN .
- Replacing. Refer to 12 V Socket 3 -U19-, REPLACING .
- Socket Illumination Bulb -L42-
- For 12 V Socket 2 -U18-
- Removing and installing. Refer to Socket Illumination Bulb -L42-, REMOVING AND INSTALLING .
- Rear Center Console
- Mount
- Depending on vehicle equipment, with 12 V Socket 2 -U18- or 230 Volt socket for Converter with Socket, 12 V-230 V -U13-
- 12 V Socket 2 -U18-
- Removing and installing. Refer to 12 V Socket 2 -U18-, REMOVING AND INSTALLING .
-- Tighten the screws -arrows- to 1.4 Nm.
