Overview - Transmission Cover, Gearshift Shaft

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2015 Audi S4, 2015 Audi A4 Quattro, and 2014 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.

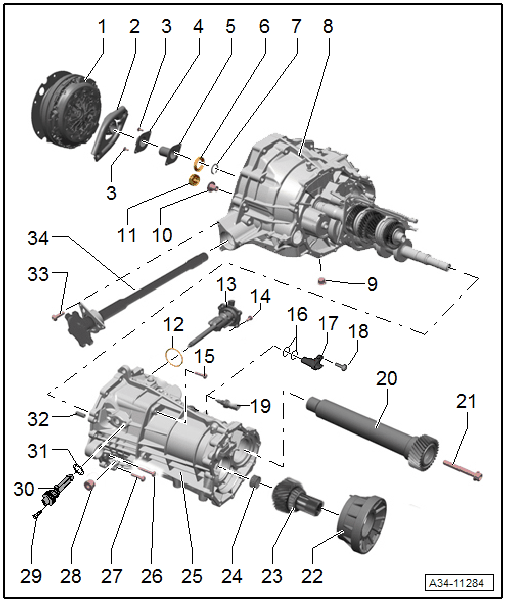

Fig 1: Overview Of Transmission Cover, Gearshift Shaft (0B2)
GWWA34-11284Courtesy of AUDI OF AMERICA, LLC
  1. Clutch Module
  2. Clutch Release Lever with Release Bearing and Spring
  3. Bolt
    • 8 Nm
    • Quantity: 2
    • Insert with Locking Fluid AMV 185 101 A1
  4. Securing Plate
    • Not installed on all versions
    • Installed position: the recess for the bolts, refer to -item  3- faces the clutch module.
      NOTE:

      Deleted from 02/2008

      Also deleted when installing a new guide sleeve, refer to OVERVIEW - CLUTCH RELEASE MECHANISM -item 8- "Guide Sleeve" (See figure 1).

  5. Guide Sleeve
    • If present, remove any grease from the guide sleeve
  6. Input Shaft Seal
  7. Circlip
    • Selecting thickness. Refer to Figure.
    • Insert in input shaft surrounding groove
  8. Transmission Housing
  9. Oil Drain Plug
    • 45 Nm
  10. Bolt
    • 200 Nm
    • For the output shaft
    • Insert with Locking Fluid AMV 185 101 A1
  11. Cap
    • With oil guide
    • For the output shaft
    • Always replace.
  12. O-Ring
    • Always replace.
  13. Gearshift Shaft with Gearshift Cover
  14. Bolt
    • 10 Nm + 45° additional turn
    • Aluminum bolts (M8; 22 mm long)
    • Quantity: 4
    • Always replace.
  15. Bolt
    • 20 Nm +30° additional turn
    • Steel bolts (M8; 30 mm long)
    • Quantity: 3
    • For the bearing bracket to the transmission cover
    • Insert with Locking Fluid AMV 185 101 A1
  16. O-Ring
    • Quantity: 2
    • Always replace.
  17. Gear Recognition Sensor -G604-
  18. Bolt
    • 10 Nm + 45° additional turn
    • Always replace.
  19. Transmission Range Gear Recognition Switch -F208-
  20. Side Shaft
    • With helical gear wheel
    • Only replaced together with the spur gear, refer to -item  23-.
  21. Bolt
    • 150 Nm + 90° additional turn
    • For the side shaft to the pinion
    • Always replace.
    • Bolt head, 21 mm (12-point)
  22. Gear Carrier
  23. Spur Gear
    • Side shaft/pinion drive wheel
    • Only replaced together with the side shaft, refer to -item  20- (See Fig 1).
  24. Needle Bearing
    • For the spur gear, refer to -item  23-.
    • Mount on the output shaft
  25. Transmission Cover
  26. Bolt
    • 15 Nm + 90° additional turn
    • Steel bolt (M8; 50 mm long)
    • Quantity: 1
  27. Bolt
    • 10 Nm + 90° additional turn
    • Aluminum bolts (M8; 35 mm long)
    • Quantity: 16
    • Always replace.
  28. Fill Plug
    • 45 Nm
  29. Bolt
    • 10 Nm + 45° additional turn
    • Aluminum bolt (M8; 22 mm long)
    • For the Transmission Neutral Position Sensor -G701- or the plug and also for the cover/gearshift shaft to the transmission cover
    • not installed on all versions
    • Always replace.
  30. Transmission Neutral Position Sensor -G701- or Closure Cap
    • Transmission neutral position sensor for vehicles with the Start/Stop System
    • Installed position. Refer to Fig 2.
    • A closure cap is installed in place of the Transmission Neutral Position Sensor -G701-
      NOTE:

      If a cap is installed in place of the Transmission Neutral Position Sensor -G701-, the closure cap does not need to be removed when disassembling and assembling the transmission.

    • The Transmission Neutral Position Sensor -G701- is omitted from MY 2012. The Gear Recognition Sensor -G604- is installed for this purpose, refer to -item  17- (See Fig 1).
    • Allocate according to transmission code.
    • Removing and installing with transmission installed is possible. Refer to COMPONENT LOCATION OVERVIEW - ELECTRICAL COMPONENTS (See figure 15).
  31. O-Ring
    • Always replace.
    • On transmissions with an installed Transmission Neutral Position Sensor - G701- or a closure cap
  32. Alignment Sleeve
    • Quantity: 2
  33. Bolt
    • 15 Nm + 45° additional turn
    • Steel bolts (M8; 25 mm long)
    • Quantity: 3
  34. Left Flange Shaft
Fig 2: Connect Connector To The Transmission Neutral Position Sensor
GWWA34-10804Courtesy of AUDI OF AMERICA, LLC

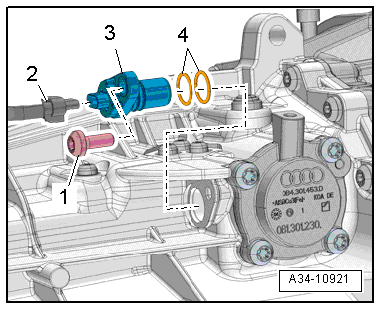

Fig 3: Removing Bolt -1- And Remove Gear Recognition Sensor -G604- -3-
GWWA34-10921Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
  2. Connector
  3. Gear recognition sensor
  4. O-Rings
NOTE:

The Gear Recognition Sensor - G604- can also be removed and installed with transmission installed. Refer to COMPONENT LOCATION OVERVIEW - ELECTRICAL COMPONENTS (See figure 14). .

CAUTION:

There is a risk of breaking or causing malfunctions in the Gear Recognition Sensor -G604- during installation.

  • The Gear Recognition Sensor -G604- -3- may not be banged or bolted -1- into the transmission.
  • The O-rings -4- and the opening in the transmission cover must be lubricated with transmission fluid.
  • The Gear Recognition Sensor -G604- -3- may be lightly pressed on with an aid, for example a hammer shaft.
