Floor covering, assembly overview
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

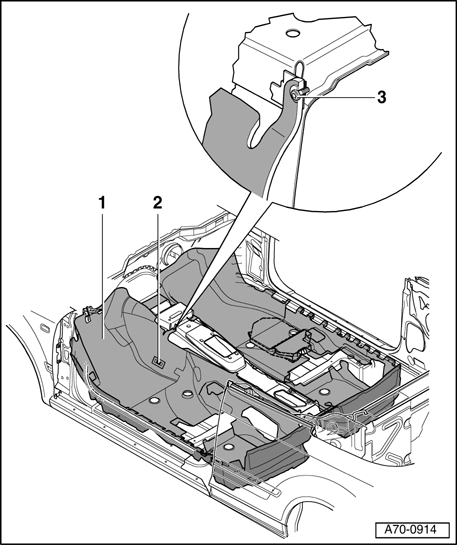

1 - Floor mat
- Removing
- Remove front seats → Front seat, assembly overview .
- Remove rear seat backrest → Rear seat backrest, assembly overview .
- Remove rear bench seat → Rear seat bench, assembly overview .
- Remove sill panel trims → Sill panel trim, removing and installing .
- Remove lower A-pillar trims → Lower A-pillar trim, assembly overview .
- Remove foot rest → Removing and installing foot rest .
- Remove foot rest holder → Foot rest holder, removing and installing .
- Remove center console → Center console, assembly overview .
- Detach wiring harness under center console.
- Remove bolts (2x) at air ducts - 2 - (2x) and remove both air ducts - 2 - (2x).
- Unscrew bolts - 3 - (2x).
- Fold floor mat - 1 - length ways and remove floor mat - 1 - from vehicle.
- Installing
NOTE:
- Floor covering is liable to tear slightly at cut-outs. Install floor mat carefully.
- Install floor mat - 1 - in reverse order of removal.
2 - Air ducts (2x)
3 - Bolts (2x)
