Center console, assembly overview

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

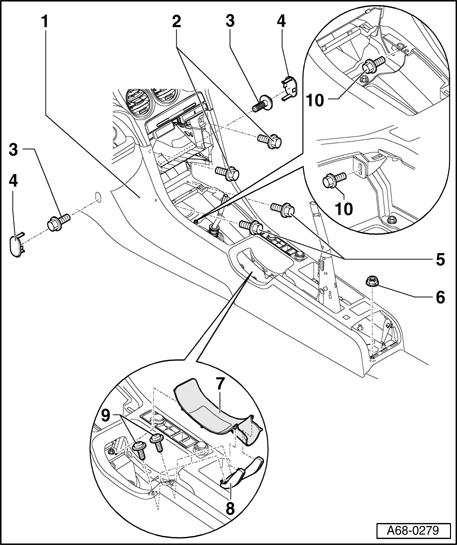

Fig 1: Center Console, Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Center console

Removing

Refer to coding on vehicles with encoded radio/radio navigation system (RNS); if necessary, interrogate.
Disconnect ground (GND) strap at battery with ignition switched off.
Vehicles with radio: Remove radio. →
- 91 - COMMUNICATION
- 91 RADIO, TELEPHONE, NAVIGATION, TRIP COMPUTER for COMMUNICATION, CABRIOLET
For vehicles with on-screen navigation system: Remove Control module for operating electronics, navigation J401. →
- 91 - COMMUNICATION
- 91 RADIO, TELEPHONE, NAVIGATION, TRIP COMPUTER for COMMUNICATION, CABRIOLET

Remove radio trim and storage compartment trim in front center section → Radio cover and trim, assembly overview .
Remove center armrest → Rear center armrest and ashtray, assembly overview .
Remove A/C Control Head E87. → 87 AIR CONDITIONING
Apply parking brake firmly.

In the case of an automatic transmission push selector lever fully back.
Remove caps - 4 - from bolts - 3 - on right and left of front footwell at side of center console.
Remove bolts - 3 - on right and left of front footwell at side of center console.
Remove parking brake lever handle → Parking brake handle, removing and installing .

Remove parking brake trim → Parking brake lever trim, assembly overview .
Pry out cover - 7 - from front.
Remove the two Phillips head screws - 9 - on connecting piece - 8 - and remove connecting piece. Otherwise the center console cannot be pulled over the parking brake lever.
Manual transmission: Remove cover and boot → Gear cover and boot, assembly overview .

Automatic gearbox: Pry gear cover off upward → Gear cover and boot, assembly overview .
Remove front ashtray → Front ashtray, assembly overview .
Remove two bolts - 5 - in ashtray opening.
Remove four bolts - 10 - around the gear lever, which secure the center console.

Disconnect connector for convertible-top actuation, cigarette lighter and/or navigation module → Navigation system operating unit in center console, assembly overview .
Remove two bolts - 2 -.
Remove hex combi nut - 6 -.
Push center console carefully backward and remove from vehicle. .

NOTE:

Before installing center console, make sure all insulating elements have been installed correctly → Insulation, center console .

2 - Bolts (2x)

Tightening torque 3.5 Nm

3 - Bolts (2x)

Tightening torque 3.5 Nm

4 - Covers (2x)

5 - Bolts (2x)

Tightening torque 3.5 Nm

6 - Hex combi nut

Vehicles with center armrest: Tightening torque 10 Nm
Vehicles without center armrest: Tightening torque 5 Nm

7 - Parking brake cover

8 - Connecting piece

9 - Bolts (2x)

Tightening torque 2 Nm

10 - Bolts (4x)

Tightening torque 3.5 Nm
