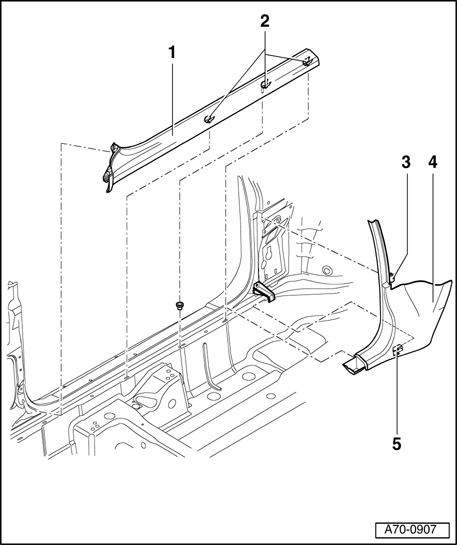

Lower A-pillar trim, assembly overview
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Sill panel trim
2 - Clips (3x)
3 - Clip
4 - Lower A-pillar trim
- Removing
- Unclip sill panel trim - 1 - at clips - 2 - (3x).
- Lift front sill panel trim - 1 -.
- Unclip lower A-pillar trim - 4 - at clip - 5 -.
- Press retainer tab on clip - 3 - and remove lower A-pillar trim - 4 -.
- Installing
- When installing, ensure that rubber door surround is in full contact with lower A-pillar trim - 1 -.
- Install lower A-pillar trim - 1 - in reverse order of removal.
5 - Clip
