Insulation, center console

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

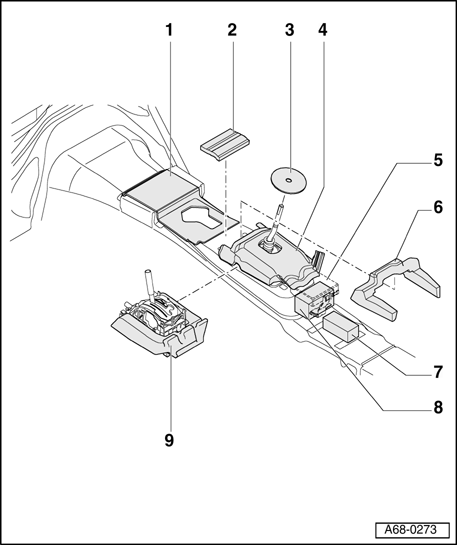

Fig 1: Center Console Insulation

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Insulation, center console mount

2 - Glove compartment

3 - Bolts (3x)

Only for 5-speed manual transmissions

4 - Insulation, gearshift

For manual transmission

5 - Interior monitor control module

6 - Insulation, tunnel

7 - Parking brake lever filler piece

Only with interior monitor

8 - Filler piece

Only with interior monitor

9 - Insulation, gearshift

For automatic transmission
