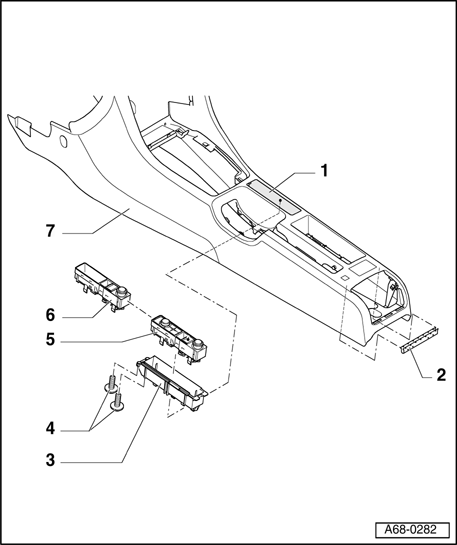

Navigation system operating unit in center console, assembly overview
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Recess
2 - Clamp
- Only for vehicles with center armrest.
3 - Mounting frame
- Removing
- Remove navigation system operating unit with cigarette lighter - 5 - or tray with cigarette lighter - 6 -.
- Remove center console - 7 - → Center console, assembly overview .
- Turn center console over.
- Remove two bolts - 4 - on mounting frame - 3 -.
- Remove mounting frame - 3 - from recess - 1 -.
4 - Bolts (2x)
- Tightening torque 2 Nm
5 - Navigation system operating unit with cigarette lighter
- Removing
- Apply parking brake firmly.
- Pry out cover underneath parking brake lever :
- Reach into opening below the parking brake lever and press navigation system operating unit with cigarette lighter out of center console - 7 - from below.
6 - Tray with cigarette lighter
- Removing
- Apply parking brake firmly.
- Pry out cover underneath parking brake lever :
- Reach into opening below parking brake lever and press tray with cigarette lighter out of center console - 7 - from below.
7 - Center console
