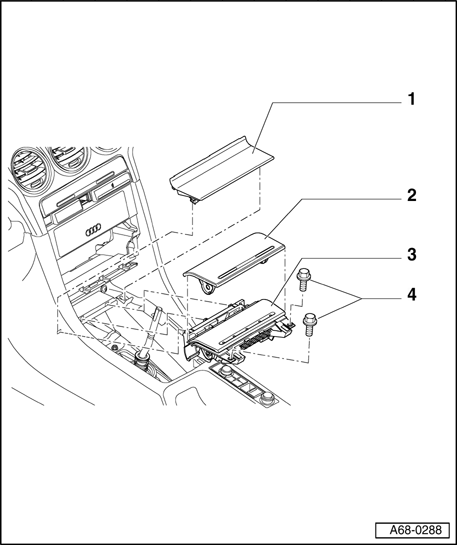

Front ashtray, assembly overview
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Tray trim
- Only on instrument panel center section for "Chorus" and "Concert" radios
2 - Ashtray trim
3 - Front ashtray
- Removing
- Manual transmission: Pry gear cover upward and remove → Gear cover and boot, assembly overview .
- Automatic transmission: Pry gear cover off upward → Gear cover and boot, assembly overview .
- For vehicles with air conditioner and "Symphony" radio/on-screen navigation system: Remove A/C Control Head E87 for air conditioner. → 87 AIR CONDITIONING
- Remove two bolts - 4 - from ashtray.
- Unclip tray trim - 1 -.
- Remove ashtray - 3 -.
- Disengage trim - 2 - from ashtray - 3 -.
4 - Bolts (2x)
- Tightening torque 3.5 Nm
