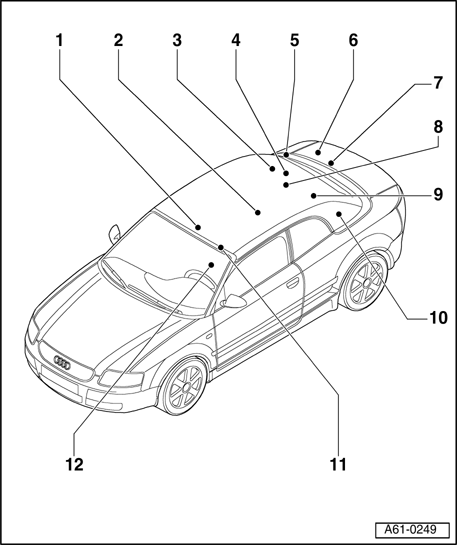

Convertible top operation electrical components - assembly overview: Notes
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- When working on the convertible top electrical system, disconnect vehicle battery ground strap.
- All cable ties that are loosened or cut off when removing convertible top should be re-installed in the same places during installation.
1 - Convertible top latch
- Consists of:
- Convertible Top Locking Motor V223
- Convertible Top Lock Switch (open) F294
- Convertible Top Lock Switch (closed) F295
- Tightening torque → Convertible Top Front Lock Switch F172
- Removing → Convertible Top Locking Motor V223/Convertible Top Lock Switch (open) F294/Convertible Top Lock Switch (closed) F295 , removing and installing .
2 - Convertible Top Control Module J256
- Tightening torque → Convertible Top Control Module J256
- Removing → Convertible Top Control Module J256 , removing .
3 - Convertible top position switch
- Consists of:
- Convertible Top Open Position Switch F171
- Convertible Top Closed Position Switch F202
- Removing → Convertible top position switch (Convertible Top Open Position Switch F171/Convertible Top Closed Position Switch F202), removing .
4 - Convertible Top Frame Position Sensor G356
- Tightening torque → Convertible Top Frame Position Sensor G356 .
- Removing → Convertible Top Frame Position Sensor G356 , removing .
5 - Compartment Cover Open Position Switch F201
- Tightening torque → Compartment Cover Open Position Switch F201 .
- Removing → Compartment Cover Open Position Switch F201 , removing .
6 - Convertible top operation hydraulic unit
- Consists of:
- Convertible Top Hydraulic Pump V118
- Convertible Top Hydraulic Pump Relay J321
- Convertible Top Hydraulic Pump Relay 2 J588
- Power Convertible Top Valve 1 N272
- Power Convertible Top Valve 2 N341
- Power Convertible Top Valve 3 N342
- Removing → Hydraulic unit (hydraulic pump), removing and installing .
7 - Convertible Top Compartment Enclosure Position Switch F292
- Removing →
- 70 - INTERIOR TRIM
- 70 - INTERIOR TRIM for BODY INTERIOR - CABRIOLET
8 - Compartment Cover Locked Right Switch 1 F200
- Removing → Transmission Range (TR) Gear Monitoring Switch F290 and Compartment Cover Locked Right Switch 1 F200 , removing .
9 - Convertible top compartment cover lock
- Consists of:
- Convertible Top Compartment Latch Switch (unlock) F293
- Convertible Top Compartment Cover Locking Motor V222
- Removing → Convertible top compartment cover lock, removing and installing .
10 - Left Convertible Top Compartment Cover Switch F290
- Tightening torque → Convertible top compartment cover latch - assembly overview .
- Removing → Transmission Range (TR) Gear Monitoring Switch F290 and Compartment Cover Locked Right Switch 1 F200 , removing .
11 - Convertible Top Front Lock Switch F172
- Tightening torque → Convertible Top Front Lock Switch F172
- Removing → Convertible Top Front Lock Switch F172 , removing .
12 - Convertible Top Operation Switch E137
- Removing → Convertible Top Operation Switch E137 , removing .
