Lock carrier with attachments, removing and installing

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Removing

Fig 1: Lock Carrier With Attachments Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bumper → Front bumper (up to model year 2005), removing and installing .
Remove sound insulation → Noise insulation panel - assembly overview .
Disengage hood lock release → Hood cable, removing and installing .
Remove engine cover - 2 - and - 3 -.

Remove air duct between lock carrier and air filter at lock carrier.
Disconnect electrical connectors.
Drain coolant.

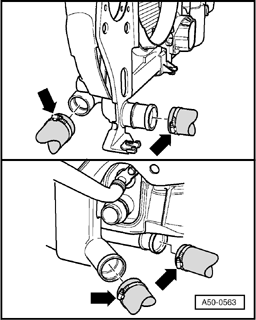

Fig 2: Removing Coolant Hose Connecting Flange Retainer On Top Of Cooler And Connecting Flange

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove coolant hose connecting flange retainer on top of cooler and connecting flange - arrows -.

Fig 3: Removing Coolant Hose Connecting Flange Retainer On Bottom Of Cooler And Connecting Flange

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove coolant hose connecting flange retainer on bottom of cooler and connecting flange - arrows -.
Loosen condenser only from water cooler (do not disconnect any lines).
Secure A/C system condenser using wire e.g. to front wheel → 87 AIR CONDITIONING .

NOTE:

Do not hang condenser on lines. Condenser lines should not be pinched under any circumstances.

Disconnect hoses to power steering oil cooler.

Fig 4: Disconnecting Hydraulic Oil Cooler

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove power steering oil cooler → 48 - STEERING .
Disconnect hoses from hydraulic oil line.
Unscrew power steering line for power-assisted steering on lock carrier.

NOTE:

The power steering oil cooler line must not be bent under any circumstances.

For cars with automatic transmission, disconnect lines to ATF-cooler →
- 37 - AUTOMATIC TRANSMISSION - CONTROLS, HOUSING for 5 SPD. AUTOMATIC TRANSMISSION 01V
- 37 CONTROLS, HOUSING for 6 SPD. AUTOMATIC TRANSMISSION 09L ALL WHEEL DRIVE
- 37 - AUTOMATIC TRANSMISSION - CONTROLS, HOUSING for CONTINUOUSLY VARIABLE TRANSMISSION (CVT) 01J
.

Fig 5: Disconnecting Hoses For Charge Air Cooler

Courtesy of VOLKSWAGEN UNITED STATES, INC.

On vehicles with charge air cooler, loosen bolts on hose clamps - arrows -.
Disconnect hoses.
Remove gasket for left and right front flap at juncture of fender at lock carrier.
Remove upper lock carrier bolts.

NOTE:

A 2nd technician will be needed to hold the lock carrier.

Remove bolt.
Pull lock carrier toward front.

Installing

Installation is reverse of removal.

Bleed cooling system →
- 19 - ENGINE - COOLING SYSTEM for 1.8 LITER 4-CYL. 5V TURBO ENGINE MECHANICAL, ENGINE CODE(S): AMB
- 19 - ENGINE - COOLING SYSTEM for 2.0 LITER 4-CYL. 4V TURBO ENGINE MECHANICAL, ENGINE CODE(S): BPG, BWT
- 19 ENGINE - COOLING SYSTEM for 3.0 LITER 6-CYL. 5V ENGINE MECHANICAL, ENGINE CODE(S): AVK, BGN
- 19 - ENGINE - COOLING SYSTEM for 3.2 V6 4V ENGINE MECHANICAL, ENGINE CODE(S): BKH
- 19 - ENGINE - COOLING SYSTEM for 4.2 LITER V8 4V ENGINE MECHANICAL, ENGINE CODE(S): BNS
- 19 - ENGINE - COOLING SYSTEM for 4.2 LITER V8 5V ENGINE MECHANICAL, ENGINE CODE(S): BHF
.

Tightening torques → Lock carrier with attachments - assembly overview .
