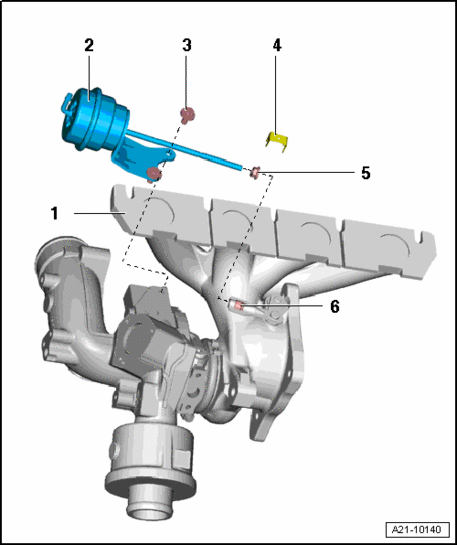

Fig 1: Turbocharger, Component Overview - Part IV

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Turbocharger

• Can only be replaced with exhaust manifold and pressure unit.
• Checking → Exhaust turbocharger vacuum diaphragm, checking
• Removing and installing → Turbocharger, removing and installing

2 - Turbocharger and vacuum diaphragm

• Removing and installing → Vacuum diaphragm for turbocharger, removing and installing
• Adjusting → Vacuum diaphragm for turbocharger, adjusting

3 - 10 Nm

4 - Securing plate

5 - 9 Nm

• Secure with sealing wax
• Sealing wax

6 - Knurled nut
