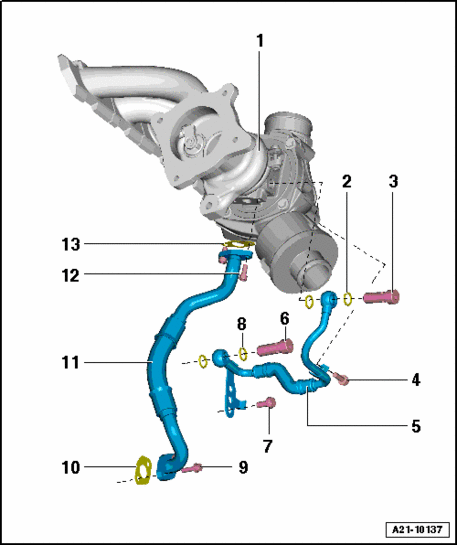

Fig 1: Turbocharger, Component Overview - Part II

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Turbocharger

Can only be replaced with exhaust manifold and pressure unit.
Removing and installing → Turbocharger, removing and installing

2 - Seal

Replace

3 - 35 Nm

4 - 9 Nm

5 - Coolant supply line

6 - 35 Nm

7 - 23 Nm

8 - Seal

Replace

9 - 9 Nm

10 - Gasket

Replace

11 - Oil return line

12 - 9 Nm

13 - Gasket

Replace
