Part III

WARNING: This page is about a different car, the 2009 Audi A4, 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Part I Part I

Part II Part II

Part IV Part IV

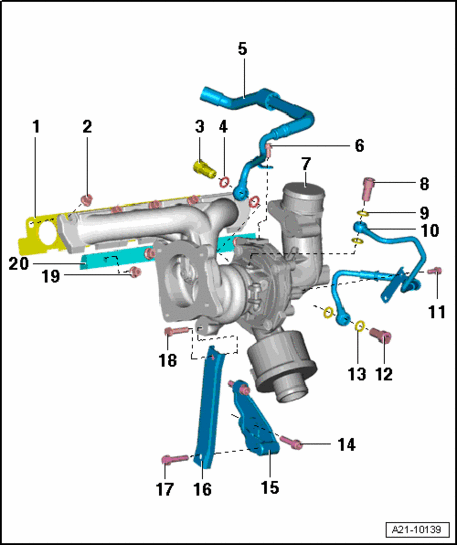

Fig 1: Turbocharger, Component Overview - Part III

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Gasket

Replace

2 - 21 Nm

Replace
Coat stud bolts on exhaust manifold with hot bolt paste.
Hot bolt paste

3 - 35 Nm

4 - Seal

Replace

5 - Coolant return line

6 - 9 Nm

7 - Turbocharger

Removing and installing → Turbocharger, removing and installing
Removing and installing → Turbocharger, removing and installing

8 - 30 Nm

9 - Seal

Replace

10 - Oil supply line

11 - 9 Nm

12 - 30 Nm

13 - Seal

Replace

14 - 23 Nm

15 - Bracket

16 - Brace

17 - 30 Nm

Coat bolt with hot bolt paste
Hot bolt paste

18 - 30 Nm

Coat bolt with hot bolt paste
Hot bolt paste

19 - 30 Nm

Do not open when removing turbocharger
Replace
Coat stud bolts on exhaust manifold with hot bolt paste.
Hot bolt paste

20 - Fastening strip
