Manual transmission and selector shaft, removing and installing

WARNING: This page is about a different car, the 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

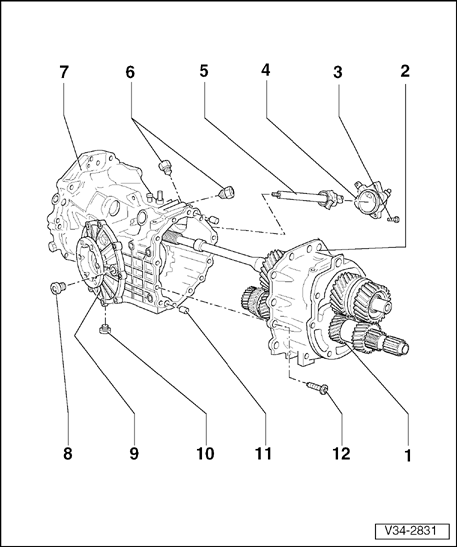

Fig 1: Manual Transmission And Selector Shaft, Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - 5th and 6th gear

Transmission remains flanged to transmission housing
Removing and installing. Refer to 5th and 6th gear, removing and installing

2 - Manual transmission

Removing and installing input shaft, drive pinion, hollow shaft and shift mechanism in transmission. Refer to Input shaft, drive pinion, hollow shaft and shift lever mechanism in transmission, removing and installing

3 - Bolt, 25 Nm

3 pieces
Inserted with sealing paste AMV 188 001 02

4 - Cover for selector shaft

Removing. Refer to Figure
Installing. Refer to Figure

Fig 2: Manual Transmission And Selector Shaft, Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

5 - Selector shaft with selector cylinder

Removing. Refer to Figure
Installing. Refer to Figure
Disassembling and assembling. Refer to Selector shaft, disassembling and assembling

6 - Locking bolt, 50 Nm

4 pieces
Insert with sealing paste AMV 188 001 02

7 - Transmission housing

Servicing. Refer to Transmission housing, servicing

8 - Oil filler plug, 40 Nm

9 - Differential

Covered by final drive cover.
Removing and installing. Refer to Differential, removing and installing

Fig 3: Manual Transmission And Selector Shaft, Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

10 - Oil drain plug, 40 Nm

11 - Dowel sleeve

2 pieces

12 - Bolt, 25 Nm

12 pieces
