Differential, removing and installing

WARNING: This page is about a different car, the 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The differential can be removed and installed with the transmission installed.

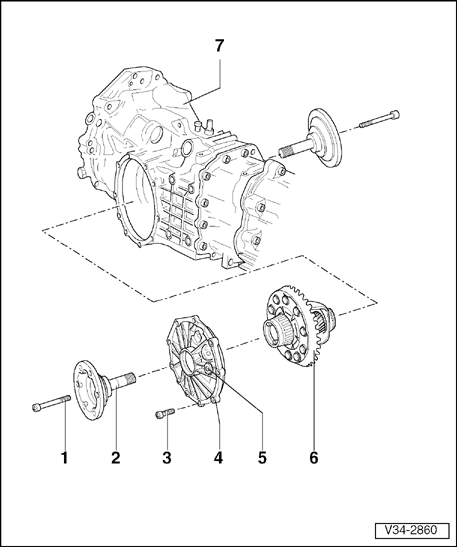

Fig 1: Differential, Removing And Installing, Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Bolt, 10 Nm and turn 90 ° further

2 - Flanged shaft

When removing, secure with a drift to prevent it turning

3 - Bolt, 25 Nm

10 pieces

4 - Final drive cover

Removing and installing speedometer trigger wheel. Refer to Trigger wheel for speedometer vehicle speed sensor -G22-, removing and installing
If replaced: Adjust ring gear. Refer to Ring gear, adjusting

Fig 2: Differential, Removing And Installing, Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

5 - Oil filler plug, 40 Nm

Checking gear oil. Refer to Transmission oil level, checking

6 - Differential

Disassembling and assembling. Refer to Differential, disassembling and assembling
If replaced: Adjust ring gear. Refer to Ring gear, adjusting

7 - Transmission housing

Servicing. Refer to Transmission housing, servicing
