5th and 6th gear, removing and installing
WARNING: This page is about a different car, the 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

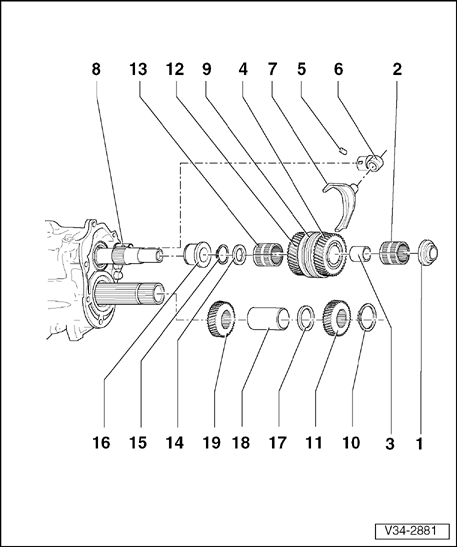

1 - 1st inner race for four-point bearing
2 - Needle bearing for 5th gear
3 - Inner race for 5th sliding gear
4 - 5th sliding gear
5 - Spring pin
6 - Follower for 5th and 6th gear
- Only replace complete with selector rod for 5th and 6th gear -Item 8- 5th and 6th gear, removing and installing
- Pulling off. Refer to Figure
7 - Selector fork, 5th and 6th gear
- Can be replaced separately
8 - Selector rod for 5th and 6th gear
- Only replace complete with follower for 5th and 6th gear
- Removing. Refer to Figure
- Installing. Refer to Figure
9 - Locking collar/synchro-hub for 5th and 6th gear
10 - Circlip
- Re-determining thickness. Refer to Figure
11 - 5th gear wheel
12 - 6th sliding gear
- Pull off together with synchro-hub and inner race for 5th gear. Refer to Figure
13 - Needle bearing
- For 6th gear
14 - Thrust washer
- For needle bearing for 6th sliding gear
- Installation position: Grooves face circlip, smooth face contact surface toward needle bearing
15 - Circlip
16 - Inner race
- For cylinder roller bearing
- Remove by hand. Refer to Figure
17 - Washer
- Re-determining thickness. Refer to Figure
18 - Spacer sleeve
- Length 39.6 mm
19 - 6th gear wheel
- To press off, remove bearing plate. Refer to Figure
- Pressing off. Refer to Figure
- Pressing on. Refer to Assembling
