Seat belt anchorage points, assembly overview

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

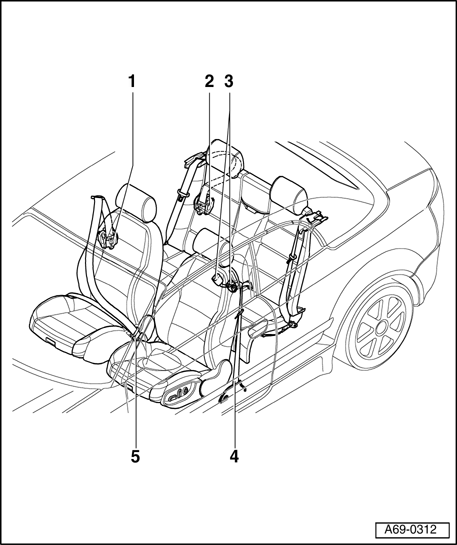

Fig 1: Seat Belt Anchorage Points, Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Three-point seat belt with belt tensioner, front left and right

Refer to → Front 3-point seat belt with belt tensioner, assembly overivew

2 - Three-point seat belt with belt tensioner, rear left and right

Refer to → Rear 3-point seat belt with belt tensioner, assembly overview

3 - Rear anchorage point for center floor panel

Refer to → Anchorage points for center floor panel, assembly overview

4 - Front anchorage point for outer floor panel

Refer to → Front anchorage point for outer floor panel

5 - Front anchorage point for belt buckle

Refer to → Front anchorage point for belt buckle
