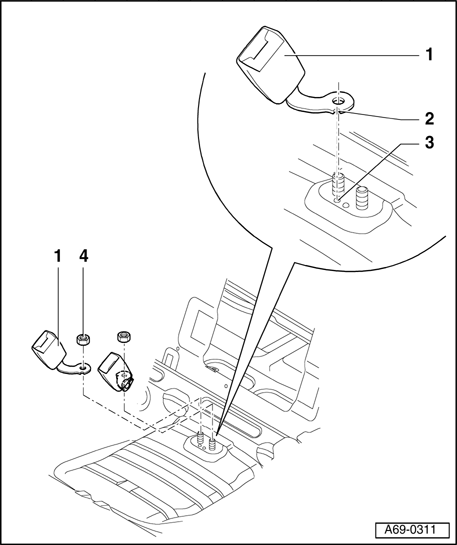

Anchorage points for center floor panel, assembly overview
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Belt buckle
- Removing
- Remove rear bench seat → Rear seat bench, assembly overview .
- Remove nut - 4 -.
- Remove belt buckle - 1 -.
- Installing
- Make sure that mounting - 2 - engages in locating projection - 3 -.
- Continue installing belt buckle - 1 - in reverse order of removal.
2 - Mounting
3 - Locating projection
4 - Nut
- Tightening torque 55 Nm
