Front anchorage point for belt buckle

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Remove seat → Seat, assembly overview .

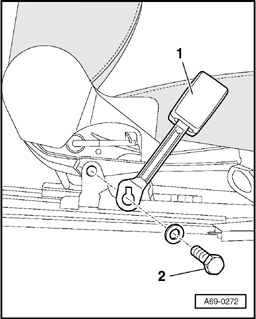

Fig 1: Removing Bolt For Belt Latch

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolt - 2 - from buckle - 1 -.

Tightening torque 24 Nm
For vehicles with "belt fastened" detector and belt buckle switch (only on drivers side, country-specific) remove wires from red connector housing.

Fig 2: Using Screwdriver To Pry Out Retaining Hooks On Red Connector Housing, Pressing Red Connector Housing Back & Cable Pin (2X) For Belt Fasten Sensor

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Use a screwdriver to pry out retaining hooks - 4 - of red connector housing - 1 -.
Push red connector housing - 1 - through toward the rear.
Wire pin - 6 - (2x) for "belt fastened" detector.

Fig 3: Identifying Red Connector Housing, Cable Retainer, Cut-Out & Cable

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Red connector housing - 1 - for belt buckle interrogation and main power supply.
Release cable retainer - 2 - in direction of arrow by prying out at cut-out - 3 -.

Illustration shows cable retainer - 2 - in released position.

Remove wires - 4 - for "belt fastened" detector from terminals 5 and 6; on drivers side (country-specific) also remove wires - 4 - for belt buckle switch from terminals 1 and 2.
Open cable ties.

Installing

Installation is in reverse order of removal.
