Component locations, overview

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

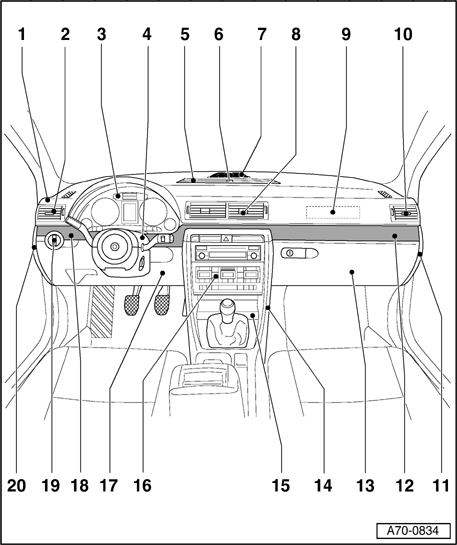

Fig 1: Instrument Panel Component Locations, Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Remove instrument panel → Instrument panel, removing and installing

CAUTION: Note assignment of airbag unit to instrument panel .

2 - Left instrument panel vent, removing → Left and right instrument panel vents, removing and installing

3 - Removing instrument cluster →

90 INSTRUMENTS
90 INSTRUMENTS for ELECTRICAL EQUIPMENT, CABRIOLET

4 - Removing upper trim for steering column switch Removing upper trim for steering column switch

5 - Removing center defroster outlet Removing center defroster vent

6 - Removing photo sensor Removing photo sensor

7 - Removing instrument panel speaker Removing instrument panel speaker

8 - Removing center instrument panel vent → Center instrument panel vent, removing and installing

9 - Removing front passenger-side airbag unit → Passenger airbag, removing and installing

10 - Removing right instrument panel vent → Left and right instrument panel vents, removing and installing

11 - Removing right instrument panel cover Removing right instrument panel cover

12 - Removing right trim for instrument panel → Right instrument panel trim, removing and installing

13 - Removing glove compartment → Storage compartments and covers

14 - Remove center console:

Vehicles through 10.04 → Center console, removing and installing (vehicles up to 10.04)
Vehicles from 11.04 → Center console, removing and installing (vehicles from 11.04)

15 - Removing front ashtray → Front ashtray, removing and installing

16 - Removing instrument cluster center piece → Instrument panel center section, removing and installing

17 - Removing storage compartment on driver-side → Drivers side storage compartment (with and without knee bolster), removing and installing

18 - Removing left trim for instrument panel → Left instrument panel trim, removing and installing

19 - Removing light switch and headlight beam adjuster Removing light switch and headlight beam adjuster

20 - Removing left instrument panel cover Removing left instrument panel cover
