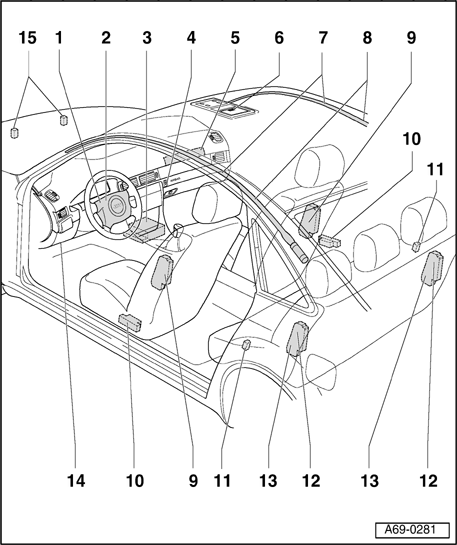

Location overview
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Driver airbag unit
- Removing and installing → Airbag unit, removing and installing (standard steering wheel)
2 - Drivers side airbag unit (sport steering wheel)
- Removing and installing → Steering wheel, removing and installing (sport steering wheel)
3 - Airbag Control Module
- Removing and installing → Airbag control module -J234-, removing and installing
4 - Key switch for passenger airbag shut-off
- Not Applicable
5 - Front passenger airbag unit
- Removing and installing → Passenger airbag, removing and installing
6 - Pasenger-side airbag malfunction indicator lamp out K145
- Vehicles through 10.04: Removing and installing → Front Passenger s Airbag Disabled Indicator Lamp K145, removing and installing (vehicles up to 10.2003)
- Vehicles from 11.04: Removing and installing → Front Passenger s Airbag Disabled Indicator Lamp K145, removing and installing (vehicles from 11.2003)
7 - Sedan side curtain airbag
- Removing and installing → Side curtain airbag (Sedan), removing and installing
8 - Avant side curtain airbag
- Removing and installing → Side curtain airbag (Avant), removing and installing
9 - Front side airbag
- Removing and installing → Side airbags, servicing
- Locking and activating Electrical
10 - Transverse acceleration sensor
- Vehicles up to 10.2004 at B-pillar: Removing and installing → Crash sensor for front side airbag, removing and installing (vehicles up to 10.2004)
- Vehicles from 11.2004 in front doors: Removing and installing → Crash sensor for front side airbag (pressure sensors), removing and installing (vehicles from 11.2004)
11 - Transverse acceleration sensor on C-pillar
- Removing and installing → Crash sensor for rear side airbag (side curtain airbag), removing and installing
12 - Rear side airbag (foldable backrest)
- Removing and installing → Rear side airbag (foldable backrest), removing and installing
13 - Rear side airbag (non-foldable backrest)
- Removing and installing → Rear side airbag (non-foldable backrest), removing and installing
14 - Diagnostic connector
15 - Transverse acceleration sensor on front end
- Removing and installing → Front airbag crash sensor, removing and installing
