Rear side airbag (non-foldable backrest), removing and installing
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.
Special tools, testers and auxiliary items required
- Vehicle Diagnosis, Testing and Information System VAS 5051 A
- Closing pliers VAS 6273
CAUTION:
Observe safety precautions for work on airbags →
Airbag safety precautions .

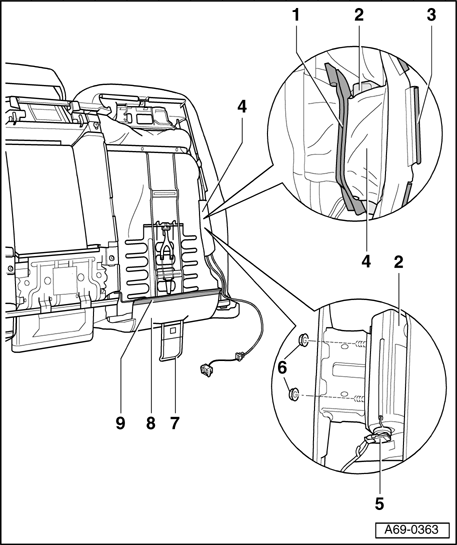

1 - Zip fastener
2 - Driver-side and passenger-side rear side airbags
- Removal:
- Disconnect the battery ground (GND) strap →
- 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL
- 27 - BATTERY, STARTER, GENERATOR, CRUISE CONTROL for ELECTRICAL EQUIPMENT - GENERAL INFORMATION
- Remove rear seat bench: Vehicles through 10.04 → Seatbench, removing and installing - vehicles up to 10.04 , vehicles from 11.04 → Seatbench, removing and installing - vehicles from 11.04 .
- Remove rear seat backrest → Fixed backrest, removing and installing .
- Pry out side clamping strips - 3 - using a screwdriver.
- Pry out lower clamping strip - 9 - using a screwdriver.
- Slide cover - 8 - at bottom over bracket - 7 -.
- Turn back cover in area of side airbag - 2 -.
- Unzip - 1 - protective cover of side airbag - 4 -.
- Open securing clip at side airbag connector - 5 - and disconnect connector.
- Turn back cover and upholstery in area of side airbag - 2 - far enough so the back side of the side airbag is accessible.
- Remove nuts - 6 - (2x).
- Remove side airbag - 2 -.
- Installing:
- Install side airbag - 2 - in reverse order of removal.
- Fasten zip - 1 - at protective cover for side airbag - 4 -, using closing pliers VAS 6273.
- Switch on ignition.
CAUTION:
No one should be in vehicle when connecting battery.
- Connect the battery ground (GND) strap →
- 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL
- 27 - BATTERY, STARTER, GENERATOR, CRUISE CONTROL for ELECTRICAL EQUIPMENT - GENERAL INFORMATION
NOTE:
- Follow safety measures after connecting battery →
- 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL
- 27 - BATTERY, STARTER, GENERATOR, CRUISE CONTROL for ELECTRICAL EQUIPMENT - GENERAL INFORMATION
- If the Airbag Malfunction Indicator Lamp (MIL) K75 shows a malfunction after assembly, DTC memory must be checked with Vehicle Diagnostic, Testing and Information System VAS 5051 A, cleared and then rechecked.
3 - Side retaining strips
4 - Protective cover for side airbag
5 - Connector for side airbag
6 - Nuts (2x)
7 - Support
8 - Cover
9 - Lower retaining strip
