Steering wheel, removing and installing (sport steering wheel)

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

Fig 1: Identifying Torque Wrench V.A.G. 1331

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Torque wrench V.A.G 1331

Fig 2: Identifying Vehicle Diagnosis, Testing And Information System VAS 5051

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Vehicle Diagnosis, Testing and Information System VAS 5051 A

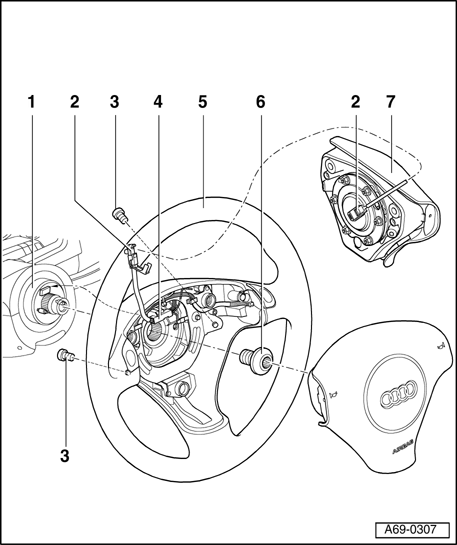

Fig 3: Steering Wheel (Sport Steering Wheel) Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Coil connector with slip ring

2 - Airbag unit connector

3 - Torx bolts T30 (Qty. 2)

Tightening torque 7 Nm

4 - Spiral spring connector

5 - Steering wheel

Removal:

Remove airbag unit (sport steering wheel) → Airbag unit, removing and installing (sport steering wheel) .
Bring steering wheel to center position (wheels straight).
Remove screw - 6 -.
Remove spiral spring connector - 4 -.

Remove steering wheel - 5 -.

Installing:

Installation is reverse of removal. Observe the following when doing so:

Ensure connector and securing clip engage completely (audibly).
Attach steering wheel in center position (wheels straight).
Replace bolt - 6 - and tighten it to 50 Nm.

6 - Socket head bolt

Tightening torque 50 Nm

7 - Airbag unit
