Three-point seat belt with belt height adjuster, removing and installing
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.
Special tools, testers and auxiliary items required
- Torque wrench V.A.G 1331
- Torque wrench V.A.G 1332
1 - Belt
- Removal:
CAUTION:
Observe measures when disconnecting battery. →
- 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL
- 27 - BATTERY, STARTER, GENERATOR, CRUISE CONTROL for ELECTRICAL EQUIPMENT - GENERAL INFORMATION
- Disconnect battery →
- 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL
- 27 - BATTERY, STARTER, GENERATOR, CRUISE CONTROL for ELECTRICAL EQUIPMENT - GENERAL INFORMATION
- Loosen upper A-pillar trim to B-pillar trim → Upper A-pillar trim, removing and installing .
- Loosen upper D-pillar trim to B-pillar trim → D-pillar trim, removing and installing .
- Remove upper B-pillar trim → Upper B-pillar trim, removing and installing .
- Remove lower B-pillar trim → Lower B-pillar trim, removing and installing .
- Loosen seat belt eyes - 2 - on outer seat anchorage point.
- Loosen belt - 1 - from guide - 5 -.
- Note anti-twist mechanism, loosen bolt - 4 - and remove belt tensioner - 3 -.
- Remove bolt - 7 - on top of belt height adjuster - 6 - and loosen belt - 1 - from height adjuster.
- If complete remove of the belt height adjuster - 6 - is desired, loosen bolt - 8 - on height adjuster.
- Open yellow retainer on yellow-blue connector - 9 - with a screwdriver and disconnect connector.
- Installing:
- Install belt webbing rotated by 180° - arrow - -as shown in Fig 3-.
- Arrow - A - faces in direction of travel.
- Ensure connector - 9 - is engaged correctly.
- Remaining installation is in reversed sequence.
NOTE:
- After installing passenger side three-point seatbelt, check belt function for child seat → Checking child seat anchorage function for supplemental child seats (not for drivers seat belt) .
- The three-point seat belt must not be impeded by cables, wires, insulation, etc.
- Follow measures after connecting battery →
- 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL
- 27 - BATTERY, STARTER, GENERATOR, CRUISE CONTROL for ELECTRICAL EQUIPMENT - GENERAL INFORMATION

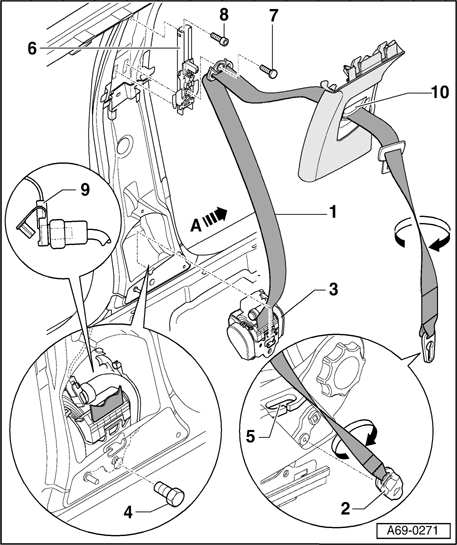

2 - Eyes on outer seat belt end anchorage point
3 - Belt tensioner
4 - Screw
- Tightening torque 55 Nm
5 - Guide
6 - Belt height adjustment
- Removal:
- Remove upper B-pillar trim - 5 - → Upper B-pillar trim, removing and installing .
- Remove bolt - 7 - and bolt - 8 -.
- Remove belt height adjuster - 6 - upward.
- Installing:
Installation is reverse of removal.
NOTE:
- Button - 10 - must not be pressed during installation.
- Function test after installing trim:
- Height adjuster must audibly engage into all five possible positions (even top position).
- Button must return by itself to upper position after being actuated.
7 - Screw
- Tightening torque 55 Nm
- Belt relay must swivel by itself in carrier direction after tightening screw.
8 - Screw
- Tightening torque 23 Nm
9 - Connector
10 - Height adjustment button
