Upper A-pillar trim, removing and installing
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.
Special tools, testers and auxiliary items required
- Torque wrench V.A.G 1410
CAUTION:
Note safety precautions for working on airbags →
Airbag system, general safety precautions and side curtain airbags →
Side curtain airbag, additional safety precautions .

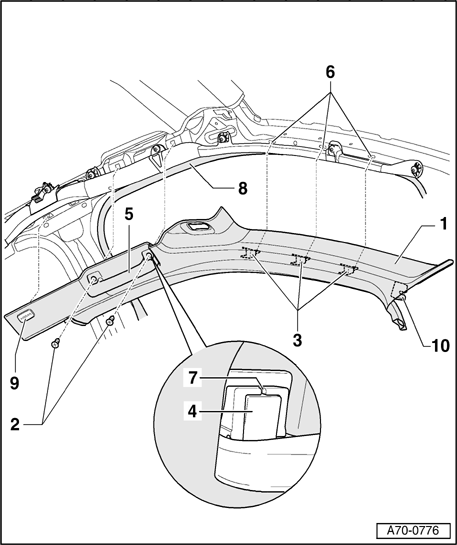

1 - Upper A-pillar trim
- Removal:
- Remove sun visor → Sun visor, removing and installing .
- Fold down roof grab handle - 5 -.
- Fold down lid above bolts on roof grab handle - 4 -.
- Remove bolts - 2 -.
- Unclip rear airbag label - 9 - (on B-pillar) and move it down.
- Remove bolt from airbag label.
- Remove upper A-pillar trim - 1 - below upper B-pillar trim and unclip three clips - 3 -.
- Remove upper A-pillar trim - 1 - to the rear.
- Installing:
CAUTION:
Always follow installation sequence for A-pillar trim.
- Guide upper A-pillar trim - 1 - toward front between door rubber and side plate.
- Guide trim retainer - 10 - into the proper clip.
- Clip upper A-pillar trim - 1 - using three clips - 3 -.
- Slide trim under upper B-pillar trim.
- Ensure that clip and metal hook of head-level airbag adapter engage securely.
CAUTION:
Ensure trim is held securely.
2 - Screws, (2x)
- Tightening torque 4 Nm
- Self-locking
- Replace after each disassembly
- Threaded holes for screws must always be cleaned (for example, with thread cutter)
3 - Clamps (Qty. 3)
4 - Roof grab handle cover
5 - Roof grab handle
6 - Mounts
7 - Groove
8 - Gasket
- After assembling trim, make sure seal is properly fitted.
9 - Airbag label
10 - Retainer
