D-pillar trim, removing and installing
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.
Special tools, testers and auxiliary items required
- Torque wrench V.A.G 1410
CAUTION:
Note safety precautions for working on airbags →
Airbag system, general safety precautions and side curtain airbags →
Side curtain airbag, additional safety precautions .

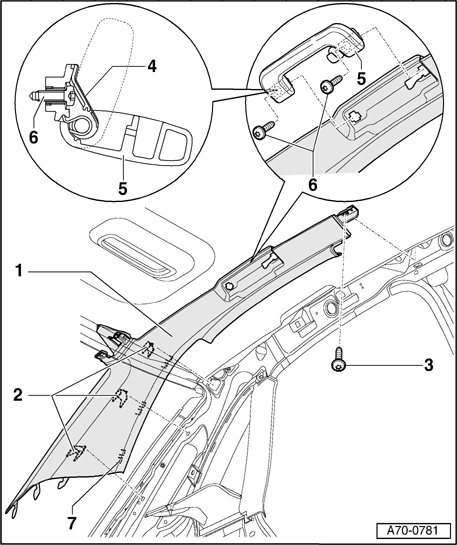

1 - Upper D-pillar trim
- Removal:
- Remove upper A-pillar trim → Upper A-pillar trim, removing and installing .
- Fold down roof grab handle - 5 -.
- Fold down lid - 4 - above bolts - 6 - on roof grab handle - 5 -.
- Remove two bolts - 6 -.
- Remove upper D-pillar trim - 1 - from upper B-pillar trim.
- Remove roof end → Roof end trim, removing and installing .
- Unclip three clips - 2 - at D-pillar trim - 1 -.
- Remove upper D-pillar trim - 1 - from rear shelf.
- Remove D-pillar trim - 1 -.
- Installing:
CAUTION:
Always follow installation sequence for D-pillar trim.
NOTE:
- If the front and rear roof grab handles have been removed, make sure to use the roof grab handle with clothing hook when installing D-pillar trim.
- Guide D-pillar trim - 1 - first to the rear into rear shelf.
- Guide hooks - 7 - into C-pillar trim slots.
- After installing, slide D-pillar trim - 1 - with front edge beneath upper B-pillar trim and move door seal accurately over trim edges again.
- Ensure that hooks of head-level airbag adapter and clip engage properly.
CAUTION:
Ensure trim is held securely.
2 - Clamps (Qty. 3)
3 - Bolt (Qty. 1)
- Belongs to upper A-pillar trim, holds A-pillar trim and D-pillar trim together
4 - Roof grab handle cover
5 - Roof grab handle
6 - Screws, (2x)
- Tightening torque 4 Nm
- Self-locking
- Replace after each disassembly
- Threaded holes for screws must always be cleaned (for example, with thread cutter)
7 - Hook
