Lower B-pillar trim, removing and installing
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

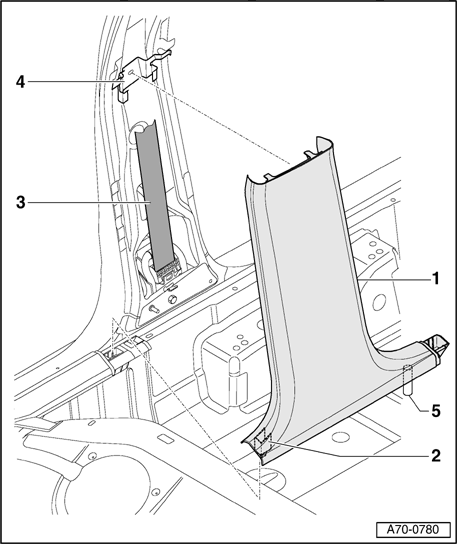

1 - B pillar trim
- Removal:
NOTE:
- For removing the lower B-pillar trim, the outer seatbelt anchoring point must not be removed.
- Unclip lower A-pillar trim at rear end → Lower A-pillar trim, removing and installing .
- Remove upper B-pillar trim → Upper B-pillar trim, removing and installing .
- Unclip lower clip - 2 - at rear end of B-pillar trim - 1 -.
- Pull lower B-pillar trim - 1 - upward until B-pillar trim disengages from belt guide - 4 -.
- Installing:
NOTE:
- Ensure that the belt webbing - 3 - is not jammed when installing trim.
- Guide pin - 5 - into hole on shell construction sill.
- Attach upper trim - 1 - to belt guide - 4 -.
- Secure lower rear trim - 1 - with clip - 2 -.
- Clip lower A-pillar trim again at rear → Lower A-pillar trim, removing and installing .
- Install upper B-pillar trim again → Upper B-pillar trim, removing and installing .
After assembling trim, make sure seal is properly fitted.
2 - Clip
3 - Belt webbing
4 - Belt guide
5 - Pins
