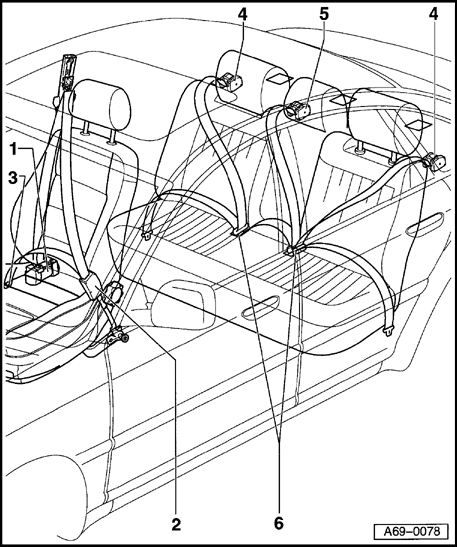

Seat belts - anchorage points (overview)
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Three-point seat belts with belt height adjuster
- Removing and installing → Three-point seat belt with belt height adjuster, removing and installing
2 - Belt buckle anchorage point
- Belt buckle anchorage point
- Removing and installing → Belt buckle anchorage point
- Seat Occupied Recognition passenger airbag deactivation belt latch (USA only), replacing
- Removing and installing → Passive Occupant Detection System (PODS) passenger airbag deactivation belt latch (USA only), replacing
3 - Outside floor assembly anchorage point
- Removing and installing → Seat belt anchor, removing and installing
4 - Left and right rear three-point seat belt
- Removing and installing → Rear three-point seat belt, removing and installing
5 - Rear center three-point seat belt
Fixed rear seat backrest:
- Removing and installing → Third rear three-point seat belt (fixed rear seat backrest), removing and installing
Folding rear seat backrest:
- Removing and installing → Third rear three-point seat belt (folding rear seat backrest), removing and installing
6 - Center floor assembly anchorage point
- Removing and installing → Center floor assembly anchorage points
