Third rear three-point seat belt (fixed rear seat backrest), removing and installing
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.
Special tools, testers and auxiliary items required
- Torque wrench V.A.G 1332

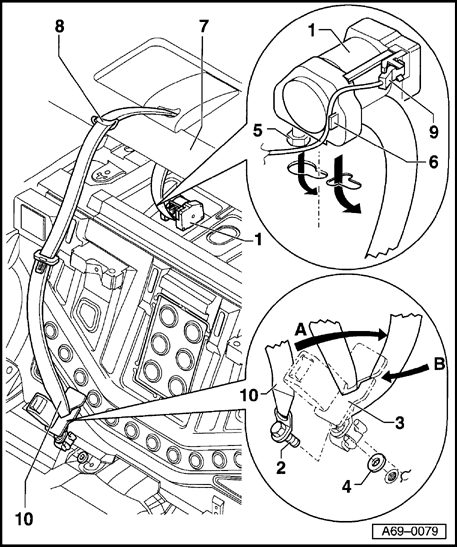

1 - Belt tensioner
2 - Screw
- Tightening torque 55 Nm
- With sealing ring
- The sealing ring - 4 - must always be replaced.
3 - Latch trim
4 - Seal
- Must be replaced
5 - Screw
- Tightening torque 55 Nm
6 - Retaining tab
7 - Rear shelf
8 - Belt guide
9 - Belt tensioner connector
10 - Belt webbing
- Removal:
- Remove rear seat bench: Vehicles through 10.04 → Seatbench, removing and installing - vehicles up to 10.04 , vehicles from 11.04 → Seatbench, removing and installing - vehicles from 11.04 .
- Remove rear seat backrest → Fixed backrest, removing and installing .
- Remove bolts - 2 -.
- Unclip belt guide cover - 8 -.
- With fixed rear seat backrest, remove rear shelf → Rear shelf, removing and installing .
- To disconnect harness connector - 9 -, open retainer using a screwdriver (USA).
- Remove bolt - 5 - (Qty. 1).
- Remove belt tensioner - 1 -.
- Installing:
- With belt tensioner - 1 - removed, install bolt - 5 - 1-2 threads.
- Insert belt tensioner - 1 - with bolt - 5 - in mounts and press belt tensioner - 1 - all the way forward.
- Tighten bolts - 5 -.
- Tighten bolts - 2 -.
- Thread belt webbing - 10 - into latch trim - 3 - without twisting.
- Guide belt webbing - 10 - in direction of arrow - A - around latch trim - 3 - and thread in direction of arrow - B -.
- Ensure connector - 9 - (USA) is engaged correctly.
- Clip stretched belt tensioner ignition wire into retaining tab - 6 -.
- Clip belt guide - 8 - into rear shelf - 7 -.
- On vehicles with belt tensioners, belt wear detection must be checked → Checking belt holding sensor for rear three-point seatbelt with belt tensioner .
