Fuel Tank, Removing And Installing, Vehicles With Multi-Link Suspension: Removing

WARNING: This page is about a different car, the 2016 Volkswagen Beetle, 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

The fuel tank must be empty. Refer to FUEL TANK, DRAINING .

-- Turn off the ignition and all electric consumers and remove the key.

-- Open the fuel filler door and the fuel cap.

-- Remove the bench seat. .

-- Fold the carpet up at the right in the area of the fuel delivery unit.

-- If equipped, remove the cover -1- and Fuel Pump Control Module -J538- -2- from the fuel delivery unit.

Fig 1: Identifying Cover With Fuel Pump Control Module J538

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip the cover -1- at the tabs -arrows- using the Trim Removal Wedge 3409.

Fig 2: Identifying Right Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -arrow- from the fuel delivery unit.

Fig 3: Fuel Pump Control Module Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the right rear wheel housing liner. Refer to REMOVING .

Vehicles with EVAP canister installed in the right rear wheel housing.

-- Disconnect all lines from the EVAP canister to the filler neck. Refer to CONNECTOR COUPLINGS, SEPARATING .

Continuation for all vehicles

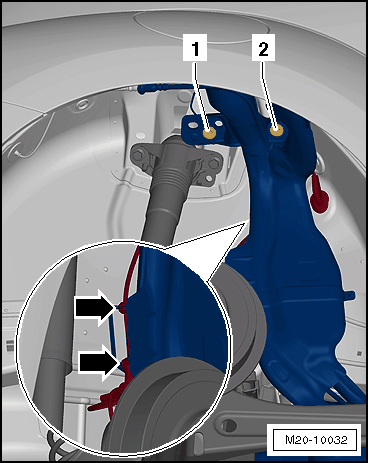

-- Remove the bolts -1- and -2- from the filler tube.

Fig 4: Identifying Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the ABS line -arrows- from the retainers.

-- Disconnect the vent line -1- (white) and supply line -2- (black) at the connecting point. Refer to CONNECTOR COUPLINGS, SEPARATING .

Fig 5: Disconnecting Vent Line (White) And Supply Line (Black) At Connecting Point

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the rear muffler. Refer to SEPARATING , REMOVING or REMOVING .

Fig 6: Identifying Muffler, Multi-Link Suspension, Coupe Components Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

A second technician is required for the remainder of the procedure to help support the exhaust system.

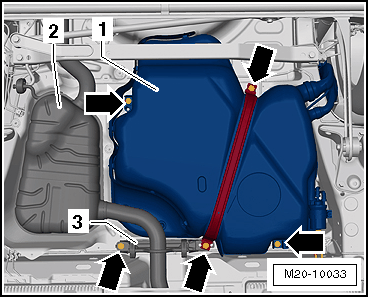

-- Remove the mounting strap and bolts -arrows-. Have a second technician hold the fuel tank -1- while doing this.

Fig 7: Identifying Mounting Strap And Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Always make sure there is enough clearance for the filler tube to prevent damaging the fuel tank while removing it.

-- Move the fuel tank downward once it is removed from the rear axle. While doing this turn the fuel tank to the left.

-- Remove the fuel tank downward. While doing this turn the fuel tank slightly to the left. The filler tube can then be guided past the rear axle.
