Rear Muffler, Convertible: Removing

WARNING: This page is about a different car, the 2015 Volkswagen Beetle, 2014 Volkswagen Beetle, and 2013 Volkswagen Beetle. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the Subframe crossbrace. Refer to REMOVAL AND INSTALLATION

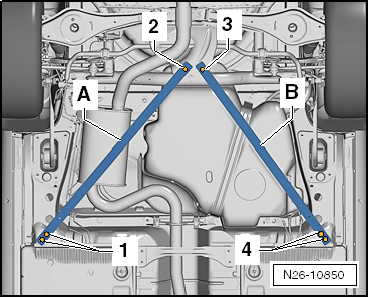

Fig 1: Identifying Bolts
GWWN26-10850Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Hold the exhaust system tight and push the suspended mounts out of the brackets.

-- Loosen the bolts on the rear muffler and remove the exhaust system.
