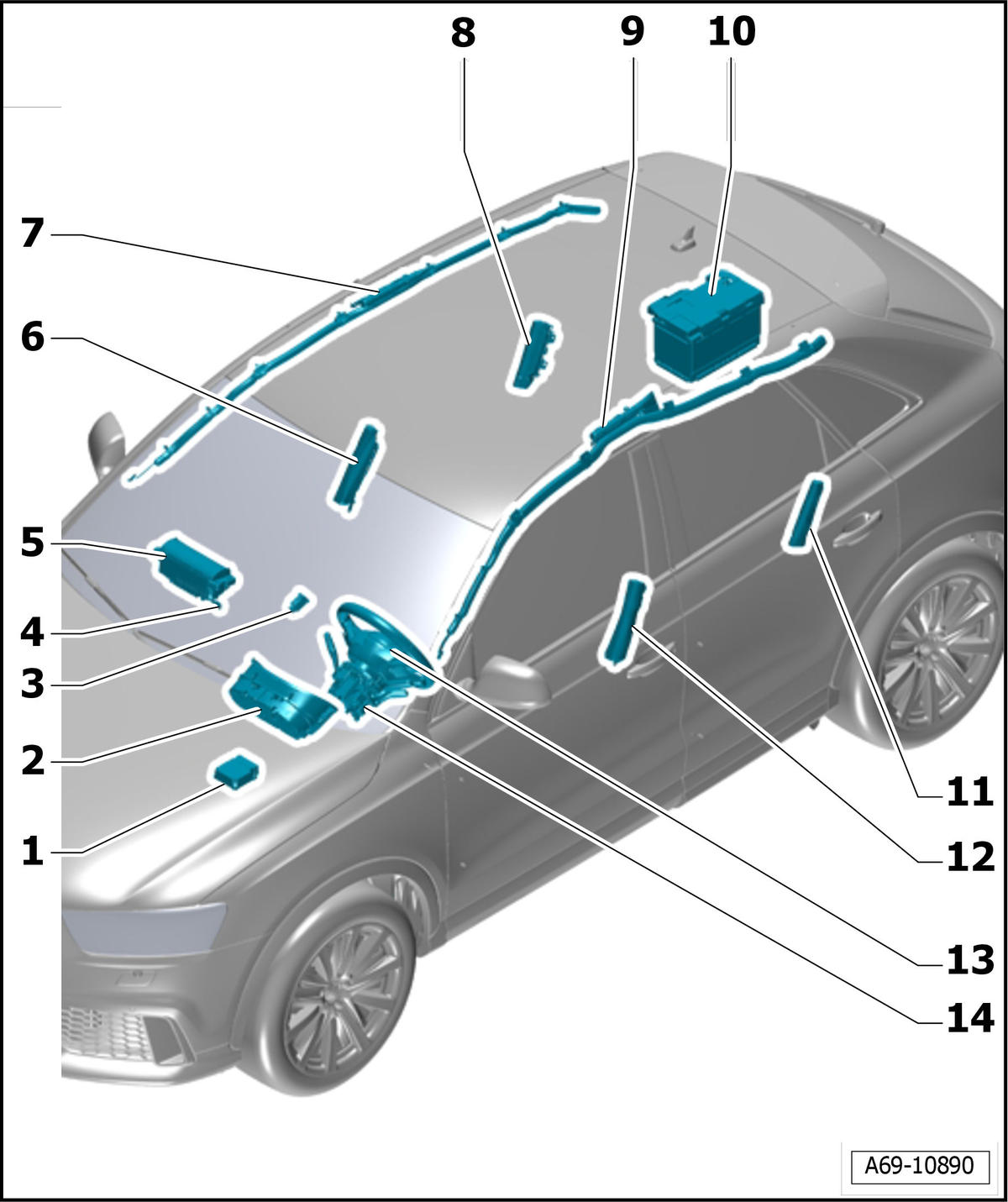

Component Location Overview - Airbag System
- Airbag Control Module -J234-
- Overview. Refer to OVERVIEW - AIRBAG CONTROL MODULE .
- Airbag Indicator Lamp -K75-
- Component location: inside the instrument cluster
- Cannot be replaced separately
- Front Passenger Airbag -Disabled- Indicator Lamp -K145-
- Located in a shared housing with the Emergency Flasher Button -E229- ; if faulty replace the Emergency Flasher Button -E229-. Refer to Emergency Flasher Button -E229-, REMOVING AND INSTALLING .
- Front Passenger Airbag Deactivation Key Switch -E224-
NOT FOR NORTH AMERICAN MARKET
- Front Passenger Airbag
- With Front Passenger Airbag Igniter 1 -N131-
- USA and Canada market-specific with Front Passenger Airbag Igniter 2 -N132-
- Overview. Refer to OVERVIEW - FRONT PASSENGER AIRBAG .
- Side Airbag, Front Passenger Side
- With Front Passenger Thorax Airbag Igniter -N200-
- Overview. Refer to OVERVIEW - FRONT SIDE AIRBAG .
- Front Passenger Head Curtain Airbag
- with Front Passenger Head Curtain Airbag Igniter -N252-
- Overview. Refer to OVERVIEW - HEAD CURTAIN AIRBAG .
- Rear Side Airbag on Passenger Side
- With Passenger Side Rear Thorax Airbag Igniter -N202-
- Equipment levels
- Overview. Refer to OVERVIEW - REAR SIDE AIRBAG .
- Driver Head Curtain Airbag
- with Driver Head Curtain Airbag Igniter -N251-
- Overview. Refer to OVERVIEW - HEAD CURTAIN AIRBAG .
- Battery Interrupt Igniter -N253-
- Only RS Q3
- Overview. Refer to OVERVIEW - BATTERY INTERRUPT IGNITER .
- Rear Side Airbag on Driver Side
- with Driver Side Rear Thorax Airbag Igniter -N201-
- Equipment levels
- Overview. Refer to OVERVIEW - REAR SIDE AIRBAG .
- Side Airbag, Driver Side
- With Driver Thorax Airbag Igniter -N199-
- Overview. Refer to OVERVIEW - FRONT SIDE AIRBAG .
- Driver Side Airbag
- With Driver Airbag Igniter -N95-
- Overview. Refer to OVERVIEW - DRIVER SIDE AIRBAG .
- Steering Column Electronics Control Module -J527-
- With Airbag Spiral Spring/Return Spring with Slip Ring -F138- and Steering Angle Sensor -G85-
- Removing and installing. Refer to STEERING COLUMN SWITCH MODULE, REMOVING AND INSTALLING, WITH MECHANICAL IGNITION LOCK or STEERING COLUMN SWITCH MODULE, REMOVING AND INSTALLING, WITH ELECTRONIC IGNITION LOCK .
