Overview - Rear Side Airbag

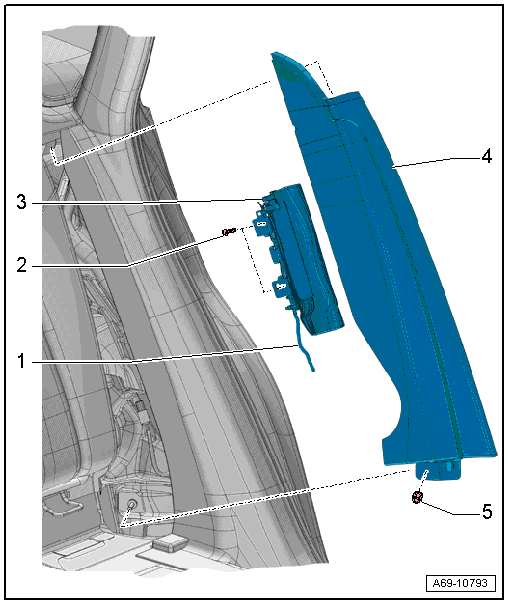

Fig 1: Rear Side Airbag Exploded View

Courtesy of AUDI OF AMERICA, LLC

Wire
Bolt
- 9 Nm
- Quantity: 2
- Replace
Rear Side Airbag
- Driver side: with Driver Side Rear Thorax Airbag Igniter -N201-
- Passenger side: with Passenger Side Rear Thorax Airbag Igniter -N202-
  WARNING:
  Follow all safety precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
- Removing and installing. Refer to REAR SIDE AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
Side Cushion
- Removing and installing. Refer to REAR SIDE PADDING WITH SIDE AIRBAG, REMOVING AND INSTALLING .
Nut
- 9 Nm
