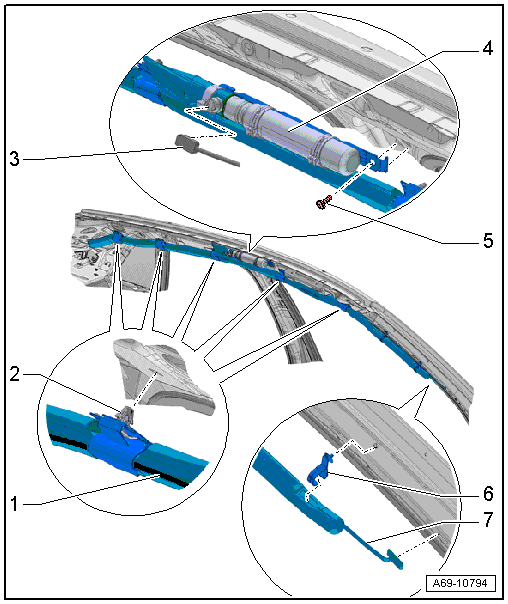

Overview - Head Curtain Airbag
- Black Line
- Serves as anti-rotation protector
- must be visible after installation.
- Clip
- Quantity: 5
- Removing and installing. Refer to Removing .
- Connector
- Driver side: for Driver Head Curtain Airbag Igniter -N251-
- Front passenger side: for the Front Passenger Head Curtain Airbag Igniter -N252-
- Disconnecting and connecting. Refer to Removing .
- Head Curtain Airbag
- Driver side: with Driver Head Curtain Airbag Igniter -N251-
- Passenger side: with Front Passenger Head Curtain Airbag Igniter -N252-WARNING:
Follow all safety precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
- Removing and installing. Refer to HEAD CURTAIN AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
- Bolt
- 5 Nm
- Replace
- Clip
- Quantity: 2
- If it was removed because of an accident, replace the clip
- Strap
- Removing and installing. Refer to Removing .
