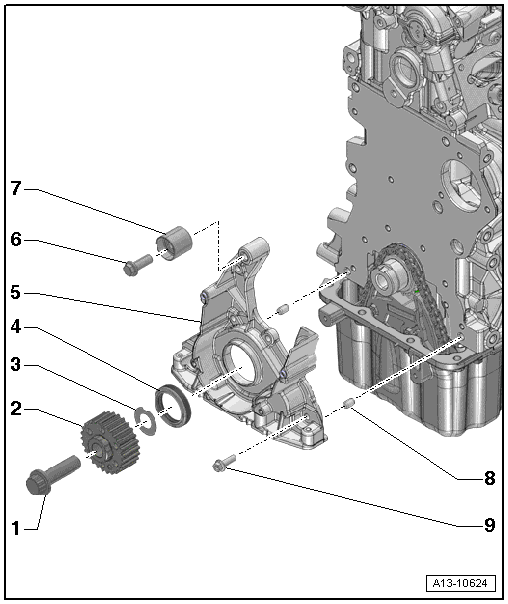

Sealing Flange, Ribbed Belt Side Overview
WARNING: This page is about a different variant/trim than selected.
- Bolt
- Tightening specifications, refer to item 20: TOOTHED BELT DRIVE OVERVIEW
- Crankshaft Toothed Belt Sprocket
- No oil may be on the contact surface of the crankshaft
- Only possible to install in one position
- Diamond Disc
- Between the toothed belt pulley and crankshaft
- Replace after removing toothed belt gear
- Shaft Seal
- For crankshaft - belt pulley side
- Removing and installing, refer to CRANKSHAFT SHAFT SEAL, BELT PULLEY SIDE, REPLACING
- Do not oil
- Sealing Flange (belt pulley side)
- Must be seated on the alignment pins
- Removing and installing, refer to SEALING FLANGE, BELT PULLEY SIDE
- Bolt
- Tightening specifications, refer to item 15: TOOTHED BELT DRIVE OVERVIEW
- Damper Roller
- For the toothed belt
- Fitting Pin
- Quantity: 2
- Bolt
- Tightening specification and sequence, refer to Fig 2
-- Tighten the bolts -1 through 11- in 3 stages as follows:
-- Install the bolts -1 through 11- by hand.
-- Then tighten the bolts -1 through 7- in a diagonal sequence in stages to 15 Nm.
-- Tighten bolts -8 through 11- to 15 Nm.
