Secondary Air Injection System Assembly Overview

Vehicles with engine code BUB

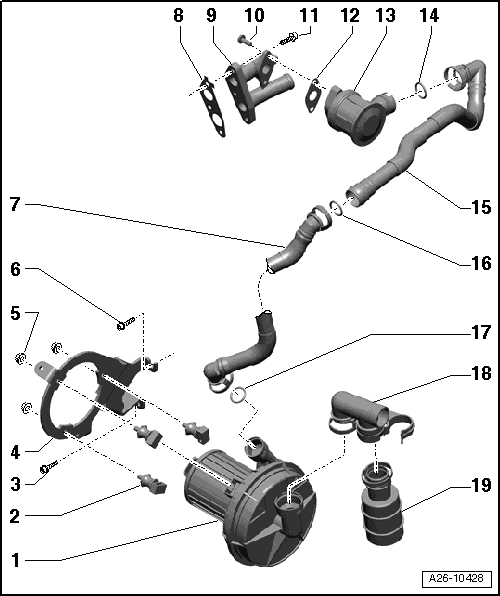

Fig 1: Secondary Air Injection, Component Overview - Vehicles With Engine Code BUB

Courtesy of AUDI OF AMERICA, LLC

1. Secondary Air Injection (AIR) Pump Motor -V101-
   • Removal and installation, refer to SECONDARY AIR INJECTION PUMP
2. Rubber Bushing
3. Bolt
   • 9 Nm
4. Bracket
   • For Secondary Air Injection (AIR) pump motor -V101-
5. Nut
   • 9 Nm
6. Bolt
   • 9 Nm
7. Hose
   • Check for secure seat
8. Gasket
   • Replace
9. Connection
   • For coolant and secondary air injection (AIR) combi-valve
10. Bolt
    • 9 Nm
11. Bolt
    • 9 Nm
12. Gasket
    • Replace
13. Secondary Air Injection (AIR) Combination Valve
    • Checking, refer to SECONDARY INJECTION COMBINATION VALVE, CHECKING FOR FUNCTION AND LEAKS
    • Removal and installation, refer to SECONDARY AIR INJECTION COMBINATION VALVE
14. O-ring
    • Replace if damaged
15. Hose
    • Check for secure seat
16. O-ring
    • Replace if damaged
17. O-ring
    • Replace if damaged
18. Connecting Piece
    • To air filter
19. Air Filter Housing
    • Clean if contaminated

Vehicles with engine code CBRA

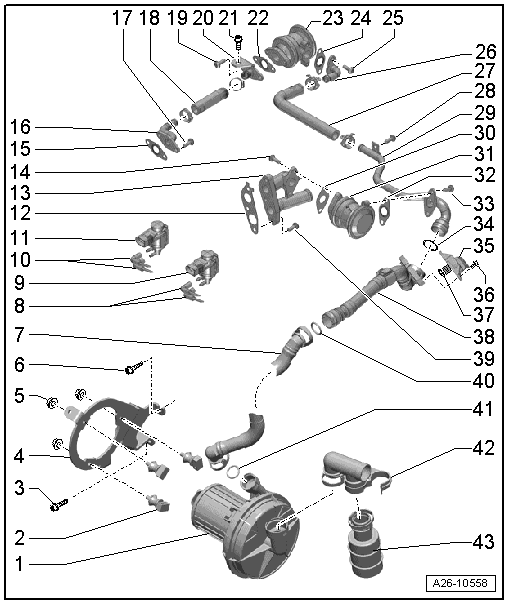

Fig 2: Secondary Air Injection, Component Overview - Vehicles With Engine Code CBRA

Courtesy of AUDI OF AMERICA, LLC

1. Secondary Air Injection (AIR) Pump Motor -V101-
   • Removal and installation, refer to SECONDARY AIR INJECTION PUMP
2. Rubber Bushing
3. Bolt
   • 9 Nm
4. Bracket
   • For secondary air injection (AIR) pump motor -V101-
5. Nut
   • 9 Nm
6. Bolt
   • 9 Nm
7. Hose
   • Check for secure seat
8. Vacuum Hoses
9. Secondary Air Injection (AIR) Solenoid Valve 2 -N320-
   • Component location, refer to Fig 5
10. Vacuum Hoses
11. Secondary air injection (AIR) solenoid valve -N112-
    • Component location, refer to Fig 5
12. Gasket
    • Replace
13. Connection
    • For coolant and left secondary air injection (AIR) combination valve
14. Bolt
    • 9 Nm
15. Gasket
    • Replace
16. Connection
    • For right secondary air injection (AIR) combination valve
17. Bolt
    • 9 Nm
18. Hose
    • Check for secure seat
19. Bolt
    • 9 Nm
20. Connection
    • For right secondary air injection (AIR) combination valve
21. Bolt
    • 9 Nm
22. Gasket
    • Replace
23. Right Secondary Air Injection (AIR) Combination Valve
    • Checking, refer to SECONDARY INJECTION COMBINATION VALVES, CHECKING FOR FUNCTION AND LEAKS
    • Removal and installation, refer to SECONDARY AIR INJECTION RIGHT COMBINATION VALVE
24. Gasket
    • Replace
25. Bolt
    • 9 Nm
26. Angle Piece
    • For right Secondary Air Injection (AIR) combination valve
27. Hose
    • Check for secure seat
28. Bolt
    • 9 Nm
29. Pipe
30. Gasket
    • Replace
31. Left Secondary Air Injection (AIR) Combination Valve
    • Checking, refer to SECONDARY INJECTION COMBINATION VALVES, CHECKING FOR FUNCTION AND LEAKS
    • Removal and installation, refer to SECONDARY AIR INJECTION LEFT COMBINATION VALVE
32. Gasket
    • Replace
33. Bolt
    • 9 Nm
34. O-ring
    • Replace if damaged
35. Secondary Air Injection Sensor 1 -G609-
    • Removal and installation, refer to SECONDARY AIR INJECTION SENSOR 1
36. Bolt
    • 3.5 Nm
37. O-ring
    • Replace
38. Pipe
39. Bolt
    • 9 Nm
40. O-ring
    • Replace if damaged
41. O-ring
    • Replace if damaged
42. Connecting Piece
    • To air filter
43. Air Filter Housing
    • Clean if contaminated

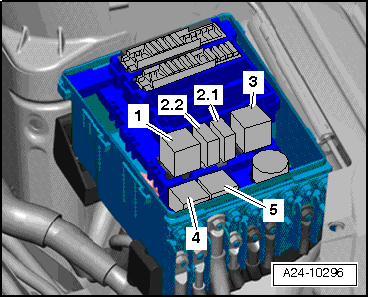

Fig 3: Component Location For Secondary Air Injection (AIR) Pump Relay J299

Courtesy of AUDI OF AMERICA, LLC

• In E-box, engine compartment.

3 - Secondary Air Injection (AIR) Pump Relay -J299-

Fig 4: Installation Location Of Secondary Air Injection (AIR) Pump Motor V101 Fuse

Courtesy of AUDI OF AMERICA, LLC

• In E-box, engine compartment.

F - 40 A secondary air injection (AIR) pump motor -V101- fuse

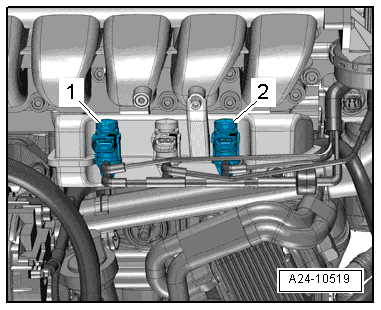

Fig 5: Component Location Secondary Air Injection (AIR) Solenoid Valve(s)

Courtesy of AUDI OF AMERICA, LLC

• On vacuum reservoir at front on the intake manifold.

1. Secondary air injection (AIR) solenoid valve -N112-
2. Secondary Air Injection (AIR) Solenoid Valve 2 -N320- - engine code CBRA only
