Secondary Air Injection Sensor 1

WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.

Removing

-- Disconnect electrical connector -1-.

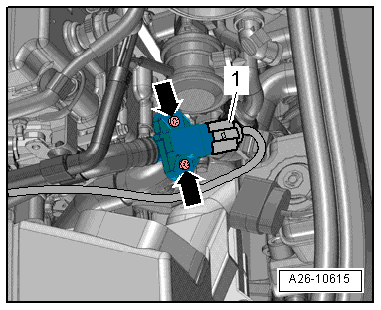

Fig 1: Component Location Secondary Air Injection Sensor 1 G609 - Engine Code CBRA

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and remove the secondary air injection sensor 1 -G609-.

Installing

Tightening specifications, refer to SECONDARY AIR INJECTION SYSTEM ASSEMBLY OVERVIEW .

Installation is in reverse order of removal, note the following:

NOTE:

Replace O-ring.
