Secondary Air Injection Right Combination Valve

WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.

Removing

-- Disconnect the rear vacuum hoses -1, 2, 4- from the intake manifold and free them up.

Fig 1: Identifying Rear Vacuum Hoses -1, 2 And 4-

Courtesy of AUDI OF AMERICA, LLC

-- Remove wiring connection from intake manifold -arrows- and lay back with hoses connected.

NOTE:

Ignore -3-.

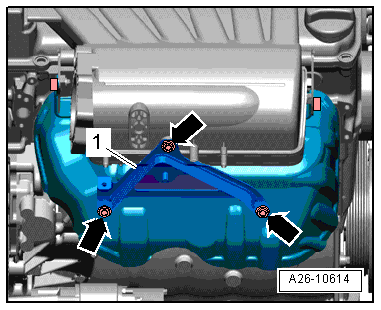

-- Remove the bolts -arrows- and bracket -1- for the heat shield.

Fig 2: Heat Shield Bracket & Bolts

Courtesy of AUDI OF AMERICA, LLC

NOTE:

To provide a better illustration, component location is shown from behind with engine removed.

-- Disconnect the vacuum hose -arrow-.

Fig 3: Identifying Vacuum Hoses And Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1- and remove the right combination valve for the Secondary Air Injection (AIR) from the Secondary Air Injection (AIR) hoses -2- and -3-.

NOTE:

Ignore -4-.

Installing

Tightening specifications, refer to SECONDARY AIR INJECTION SYSTEM ASSEMBLY OVERVIEW .

Installation is in reverse order of removal, note the following:

NOTE:

Replace the seals.
Secure all hose connections with hose clamps appropriate for the model.

-- Install the heat shield bracket. Refer to EXHAUST MANIFOLD ASSEMBLY OVERVIEW .
