Secondary Air Injection Combination Valve

WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.

Removing

-- Remove the throttle valve control module -J338-. Refer to [For engine(s) CBRA] Removal and Installation .

-- Remove the hose -2- from the secondary air injection (AIR) combination valve.

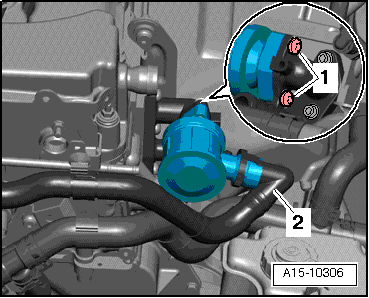

Fig 1: Identifying Secondary Air Injection (Air) Combination Valve Component Location

Courtesy of AUDI OF AMERICA, LLC

-- Remove bolts -1- and remove secondary air injection (AIR) combi-valve.

Installing

Tightening specifications, refer to SECONDARY AIR INJECTION SYSTEM ASSEMBLY OVERVIEW .

Installation is in reverse order of removal, note the following:

NOTE:

Replace the seals

-- Install throttle valve control module -J338-. Refer to [For engine(s) CBRA] Removal and Installation .
