Left And Right Release Cables, Coupe Only

NOTE:

The left and right release cables cannot be replaced separately.

Special tools and workshop equipment required

Special pop rivet pliers V.A.G 1753A

Fig 1: Special Pop Rivet Pliers V.A.G 1753A
Courtesy of AUDI OF AMERICA, LLC

Removing

WARNING:

Follow all safety precautions when working on pyrotechnic components. Refer to RESTRAINT SYSTEM COMPONENTS, SAFETY PRECAUTIONS AND TESTING PROCEDURES .
Before handling pyrotechnical components (for example, disconnecting the connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.

-- Remove the front seat. Refer to FRONT SEAT .

-- Attach the front seat to the fixture for seat repairVAS 6136. Refer to INSTALLING FRONT SEAT ON VAS 6136 .

-- Remove backrest cover panel. Refer to BACKREST COVER .

-- Remove the headrests. Refer to HEADRESTS WITH LOCKING MECHANISM .

-- Remove the trim from the entry assistance handle. Refer to TRIM WITH ENTRY ASSISTANCE HANDLE, COUPE ONLY THROUGH 10.06 .

-- Remove cover and padding from backrest. Refer to BACKREST COVER AND UPHOLSTERY .

NOTE:

The lumbar support does not need to be removed when removing and installing the release cables.

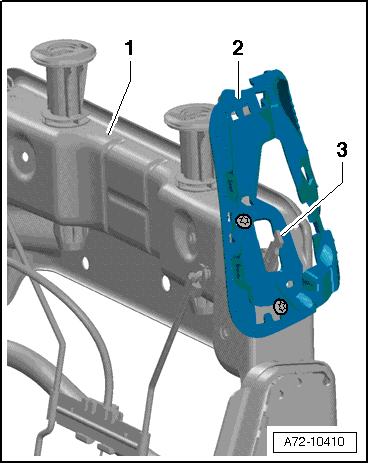

-- Press entry assistance handle lever -3- and fold backrest forward.

Fig 2: Identifying Backrest Frame Components

Courtesy of AUDI OF AMERICA, LLC

1 - Backrest frame

2 - Bracket

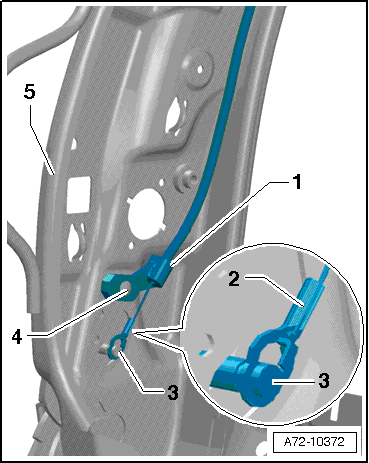

-- Using pliers, disengage eyes -2- (quantity: 2) from pins -3- (quantity: 2).

Fig 3: Identifying Right Release Cable Brackets Components

Courtesy of AUDI OF AMERICA, LLC

-- Drill out rivets -4- on left and right release cable brackets -1-.

5 - Backrest frame

-- Open cable ties on both sides.

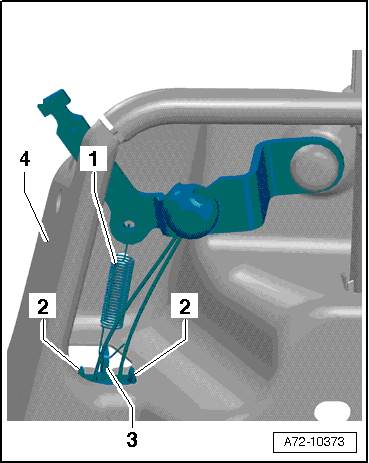

-- Disengage pull-spring -1- from bracket -3-.

Fig 4: Identifying Right Release Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Press retaining tabs -2- (quantity: 2) and pull bracket -3- down out of backrest frame -4-.

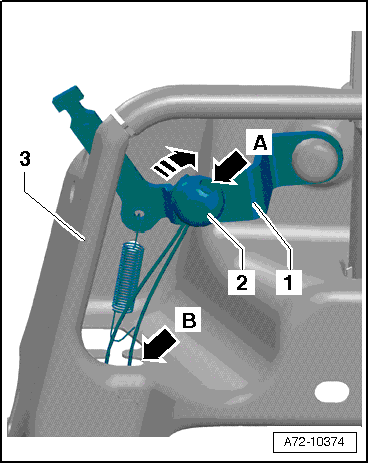

-- Turn the knob -2- in the direction of -arrow- until the nipple on the release cables -arrow A- is horizontal to the center of the backrest.

Fig 5: Identifying Right Release Brackets, Removal

Courtesy of AUDI OF AMERICA, LLC

-- Hold knob -2- firmly in this position.

-- Press knob -2- up out of lever -1-.

-- Guide knob -2- through release cable opening -arrow B- in backrest frame -3-.

-- Remove left and right release cables from backrest frame.

Installation

Install in reverse order of removal. Note the following:

WARNING:

Follow all safety precautions when working on pyrotechnic components. Refer to RESTRAINT SYSTEM COMPONENTS, SAFETY PRECAUTIONS AND TESTING PROCEDURES .
Before handling pyrotechnical components (for example, connecting electrical connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.

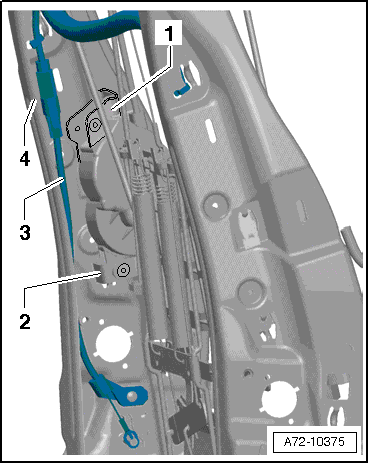

-- Ensure release cables -3- (quantity: 2) run behind retaining plates -1- and -2- (quantity: 2).

Fig 6: Identifying Cables Behind Retaining Plates

Courtesy of AUDI OF AMERICA, LLC

4 - Backrest frame

-- Adjust release cables (quantity: 2) with release cable adjusters (quantity: 2). Refer to ENTRY ASSISTANCE RELEASE CABLES ADJUSTING, COUPE ONLY .

-- Ensure pins -3- (quantity: 2) release at the same time when the entry assistance handle is pressed.

Fig 7: Identifying Right Release Cable Brackets Components

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Make sure the connectors are installed all the way in and are secure.

-- Switch on ignition.

WARNING:

Connect the battery with the ignition switched on. Pyrotechnic components could deploy after connecting the battery if they were not repaired correctly. Individuals must not be inside the vehicle when connecting the battery.

-- Connect battery ground cable with ignition switched on. Refer to [For transmission(s) 02E] [For engine(s) CBRA, BPY, CETA, CCTA, CEPB, CDMA] Removal and Installation .

-- If Airbag Malfunction Indicator Lamp (MIL) -K75- indicates a fault after installation, DTC memory must be checked, deleted and checked again.
