Trim With Entry Assistance Handle, Coupe Only Through 10.06

NOTE:

The trim with the handle can be removed and installed with the front seat installed.
The trim and handle are both destroyed during removal.

Removing

Fig 1: Identifying Trim With Entry Assistance Handle, Coupe Only Through 10.06

Courtesy of AUDI OF AMERICA, LLC

-- Destroy trim -1- and connecting piece -3- for handle -2-.

-- Do not damage cover when doing so.

-- Make sure the no plastic pieces fall into cover or between upholstery and entry assistance bracket.

-- Remove destroyed trim -1- with entry assistance handle -2- from front seat.

Installation

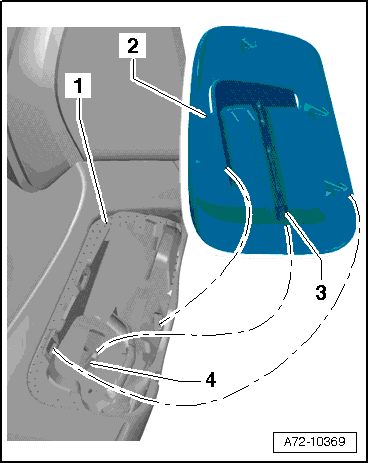

Fig 2: Identifying Trim With Entry Assistance Handle, Coupe Only Through 10.06

Courtesy of AUDI OF AMERICA, LLC

-- Slide new handle -3- onto lever -4- as far as stop.

-- At the same time, clip trim -2- with bracket -1- on backrest frame.

-- Make sure the trim -2- cleanly covers the cover opening.

-- Check function of the entry assistance handle.
