Headrests With Locking Mechanism
NOTE:
- The headrests can be removed with the front seats installed.
- The release button is located on the outer left of the driver's seat and inner left of the passenger's seat (in direction of travel).
Removing
NOTE:

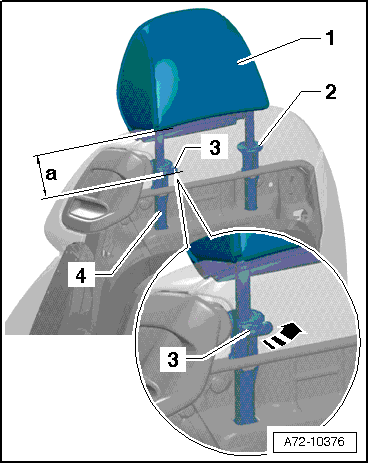

The illustration shows a Coupe backrest. The headrest is released the same way on the Coupe and Roadster.
-- Find release button pressure point -3-.
The release button is approximately a = 95 mm under upper edge of backrest.
-- Press the release button in the direction of -arrow- toward the center of the seat.
-- Hold release button -3- down in this position.
-- Pull headrest -1- up out of guides -2- and -4-.
Installation
Install in reverse order of removal. Note the following:
NOTE:
Make sure the headrest is engaged correctly in headrest guides.
