Entry Assistance Release Cables Adjusting, Coupe Only
Make sure the backrest is locked (zero position) or it could tip forward accidentally.
- Cover and upholstery removed, refer to BACKREST COVER AND UPHOLSTERY .
- Left and right release cables installed, refer to LEFT AND RIGHT RELEASE CABLES, COUPE ONLY
Pins (release pins) -2- are in locked position on both sides (delivery position, that means - lower basic position).
1 - Release cable

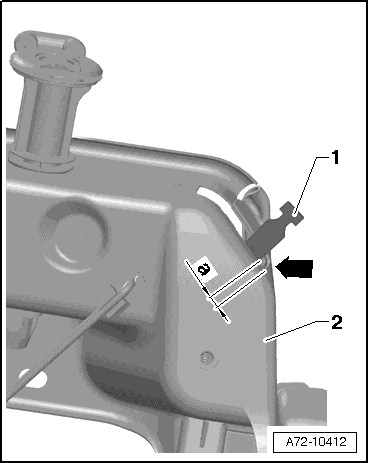

-- Bring lever -1- to a distance of a = 3 mm to edge of opening -arrow-.

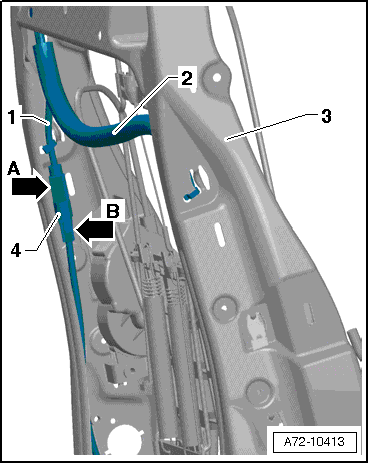

-- Adjust left and right release cables -1- and -2- at release cable adjusters -4-.
Right release cable adjuster not shown in the illustration for overview purposes.
-- To adjust, turn upper part -arrow A- and lower part -arrow B- of release cable adjuster -4- against each other.
-- Adjust release cable adjuster -4- so release cable -1- is free of tension and release cable is loose.
- Proceed the same way with the release cable that is not pictured.
- When adjusting the release cable, do not pull on release pins -2-.
-- After adjusting release cables, check function of backrest lock.

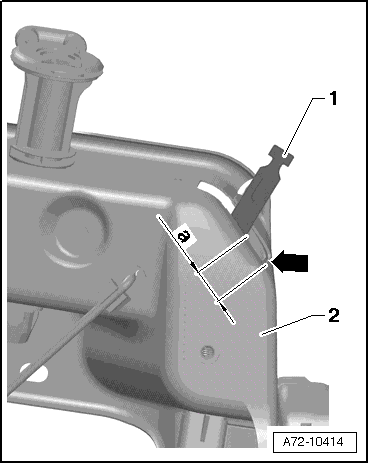

-- When pressing lever -1-, backrest must be released when lever is at a distance of a = 9 mm to edge of opening.
-- If it does not release or only releases partially, check release cable routing or repeat adjustment.
