Bench Seat Assembly Overview

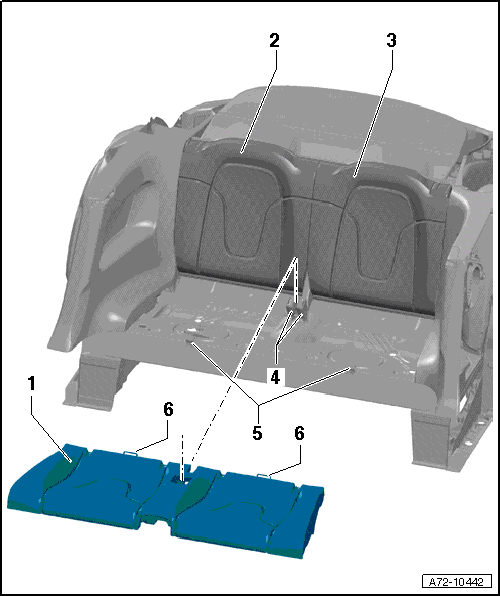

Fig 1: Bench Seat Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

Bench seat
- Removing and Installing, refer to BENCH SEAT
1/2 right backrest
Left 1/2 backrest
Belt latch
- Assembly Overview, refer to REAR BELT LATCH ASSEMBLY OVERVIEW
- Removing and Installing, refer to BELT LATCH
Omega clips
- Quantity: 2
- Cannot be replaced
- For securing bench seat
Retaining eyes
- Welded with bench seat
