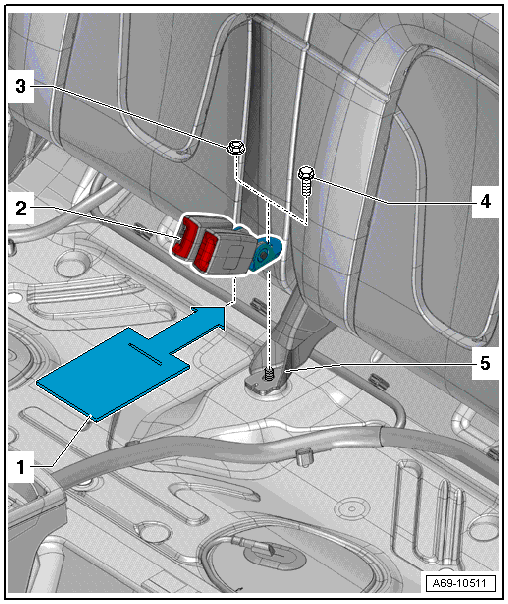

Rear Belt Latch Assembly Overview
- Cover
- Not available on all versions.
- Installing BELT LATCH
- Belt latch
- Removing and Installing, refer to BELT LATCH
- Always replace the seat belt latch if the belt tensioner has deployed with the belt on
- Nut
- Depending on version
- Check the tightening sequence for the 1/2 left/right backrest, refer to 1/2 LEFT AND RIGHT BACKREST ASSEMBLY OVERVIEW
- 55 Nm
- Bolt
- Depending on version
- Check the tightening sequence for the 1/2 left/right backrest, refer to 1/2 LEFT AND RIGHT BACKREST ASSEMBLY OVERVIEW
- 55 Nm
- Backrest center bearing
