Belt Latch

Removing

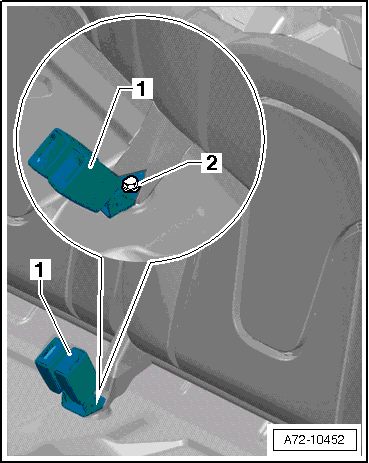

Fig 1: Identifying Seat Belt Latch And Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Remove the seat bench. Refer to BENCH SEAT .

-- Remove the bolt or nut -2-.

-- Remove seat belt latch -1-.

Installation

Fig 2: Making Sure Anti-Twist Mechanism -Arrow A- On Bottom Side Of Seat Belt Latch -1- Is Insert In Opening -Arrow B- On Center Bearing -2-

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

-- Make sure the anti-twist mechanism -arrow A- on bottom side of seat belt latch -1- is insert in opening -arrow B- on center bearing -2-.

-- Pull the tongue on the cover under the axle for the seat belt latch and swivel it upward -1-.

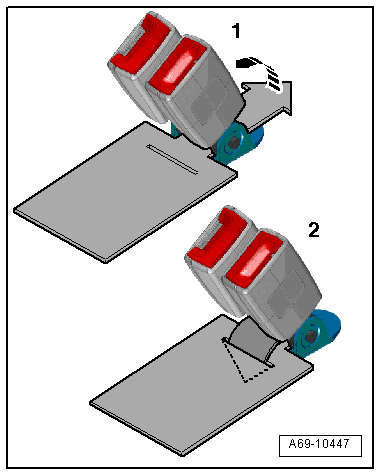

Fig 3: Pulling Tongue On Cover Under Axle For Seat Belt Latch And Swivel It Upward -1-

Courtesy of AUDI OF AMERICA, LLC

-- If equipped, insert the tongue on the cover into the slit and lock it -2-.
