Seat Versions Overview

NOTE:

Power front seats are shown in the illustrations.

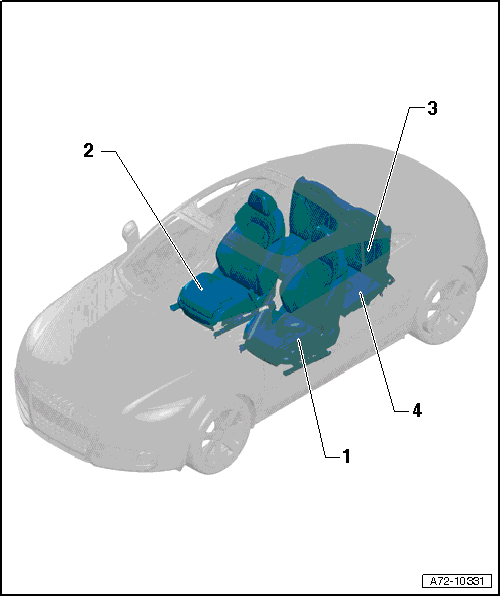

Fig 1: Seat Versions Overview

Courtesy of AUDI OF AMERICA, LLC

Driver seat
- With manual backrest release, Coupe only
- Without backrest release, with seat belt retaining loop, Roadster only
- Assembly Overview, refer to FRONT SEAT ASSEMBLY OVERVIEW
- Removing and Installing, refer to FRONT SEAT
- Optional equipment:
  - Seat and backrest heating
  - Four-way lumbar support
  - Storage compartment
- With manual backrest release, Coupe only
- Without backrest release, with seat belt retaining loop, Roadster only
- Assembly Overview, refer to FRONT SEAT ASSEMBLY OVERVIEW
- Removing and Installing, refer to FRONT SEAT
- Optional equipment:
  - Storage compartment
Front passenger seat
- With manual backrest release, Coupe only
- Without backrest release, with seat belt retaining loop, Roadster only
- Assembly Overview, refer to FRONT SEAT ASSEMBLY OVERVIEW
- Removing and Installing, refer to FRONT SEAT
- Optional equipment:
  - Seat and backrest heating
  - Four-way lumbar support
  - Storage compartment
  - LATCH child seat anchor
- with manual backrest release, Coupe only
- without backrest release, with seat belt retaining loop, Roadster only
- Assembly Overview, refer to FRONT SEAT ASSEMBLY OVERVIEW
- Removing and Installing, refer to FRONT SEAT
- Optional equipment:
  - Storage compartment
  - LATCH child seat anchor
Bench seat
- Undivided
- Assembly Overview, refer to BENCH SEAT ASSEMBLY OVERVIEW
- Removing and Installing, refer to BENCH SEAT
Backrest
- Divided evenly
- Assembly Overview, refer to 1/2 LEFT AND RIGHT BACKREST ASSEMBLY OVERVIEW
- Removing and Installing, refer to BACKREST
- Optional equipment:
  - LATCH child seat anchor
- Versions for specific countries:
  - Child seat anchors (on backrest frame)
  - Top Tether (child seat anchor in backrest shell)
